Head-of-Wall Deflection Systems

jake_douville — Tue, 26 Sep 2017 23:28:52 +0000

The post Head-of-Wall Deflection Systems appeared first on SCAFCO Steel Stud Company.

Priceless Header and Kwik-Jamb System

jake_douville — Sun, 24 Sep 2017 16:25:23 +0000

The Priceless Header and Kwik-Jamb System is an engineered header and jamb system that’s cut-to-length and ready to install, saving 70% to 80% in labor cost over traditional methods.

Offers a revolutionary solution for header and jamb systems for door and window openings
Provides a standard solution to the many problems associated with traditional headers and jambs that have troubled architects, engineers, contractors, and inspectors for decades
Standardizes the system for exterior and interior openings
Creates simplicity for the architect, engineer, and contractor

Priceless Header and Kwik-Jamb Order Form

Features & Benefits

Reduces labor cost by 70% to 80%
Meets or exceeds building code criteria
Includes section property tables
Typical CAD details for windows and doors
Easy-to-use member selection tables and software
Pre-cut engineered assembly, reducing waste
Provided saddle clip for easy connections to Kwik-Jamb
No cutting of stud flanges or welding required
Conveys greater axial strength
Improved stiffness for deflection
Excellent for load bearing applications
Simplifies engineering design for jambs and headers
Excellent bending strength in both (x) and (y) directions

Priceless Header and Kwik-Jamb Brochure

Material Composition

Product conforms to ASTM A653 / A653M standard specifications.

Yield Strength

Mill certified steel
ASTM A653/A653M
33EQS
– 57 ksi yield strength
– 65 ksi tensile strength
– G60 galvanized coating
43EQS
– 57 ksi yield strength
– 65 ksi tensile strength
– G60 galvanized coating
54 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
68 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
97 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
127 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G90 galvanized coating

SCAFCO Header Installation Video

The post Priceless Header and Kwik-Jamb System appeared first on SCAFCO Steel Stud Company.

‘Perfect Curve’ Curved Products

jake_douville — Sat, 23 Sep 2017 16:31:34 +0000

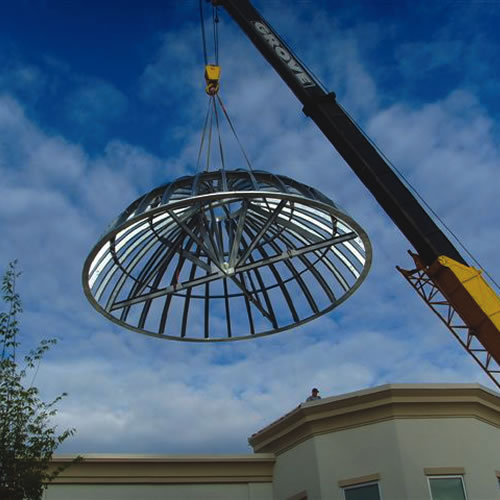

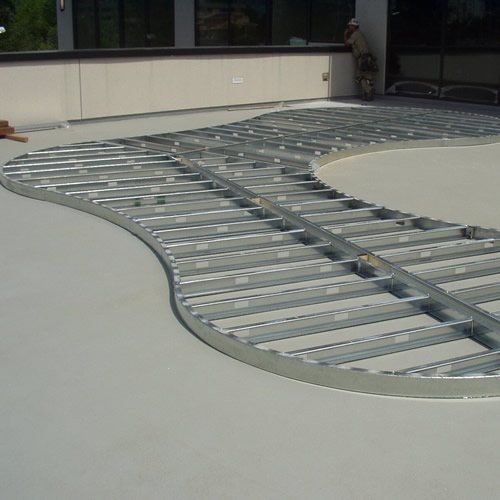

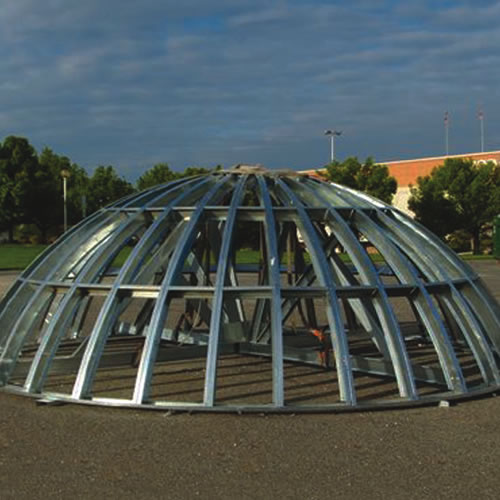

There are endless possibilities with SCAFCO Perfect Curve products. Choose your solution for curved walls, circles, soffits, domes, and arched ceilings.

Forget about the crimping and splicing.
Stop worrying about flat spots and whether there’s strength left in the mutilated track.
SCAFCO has created a curved track that has high strength values and eye appealing finish.
Enhance the designer’s vision with perfect curves and arches while saving yourself time and money.

Order Forms

SCAFCO’s Perfect Curve products saved us a huge amount of time as well as drastically cut our labor costs. We called and specified the radius and they delivered it in a week, and the materials were perfectly accurate. It was easy to apply, with our finished round soffits totally free of flat spots. You could try to make it yourself but you’ll waste your time — and a lot of energy.”

Cameron Klocow
Supervisor, Morse Drywall & Construction
Whitefish, Montana

Perfect Curve Products

Curved Track Order Form

Curved Wall Track

Where curved walls and suspended walls are required, Perfect Curve is the best solution available today. This design offers superior strength values that allow for use in load-bearing walls. Turning curved track on its side allows use in domes and barreled ceilings, and offers structural strength.

Curved Angle Order Form

Curved Angle

Intended for construction of a smooth curved soffit edge and dropped circular ceilings.

Curved Slotted Track Order Form

Curved Slotted Track

Designed to accommodate vertical deflection in a curved wall. Available in multiple radii with the option of larger slots for additional movement.

Curved Z Track Order Form

Curved Z Track

Works great in multiple planes of drop ceilings and complex radii. Available in a curved leg or a curved web application.

Arched Track Order Form

Arched Track

The perfect solution for arched openings, vaulted ceilings, and arched window framing. It’s also excellent for constructing one-piece soffit faces in ceilings and extruded illuminated ceiling panes.

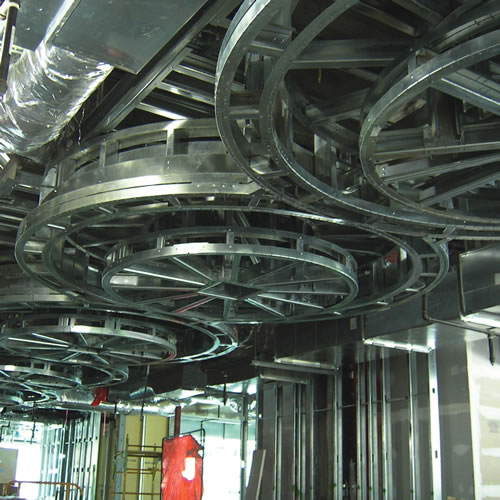

Gallery

Features & Benefits

Stronger, quality product

SCAFCO Perfect Curve products are far stronger than walls made from field-cut track.
The track is fabricated from mill certified galvanized steel conforming to all applicable ASTM specifications, using precision computer-controlled processes.
Every member is assembled by structural riveting process with no built-in stresses.

Saves labor costs

Stay away from labor intensive crimping or cutting track at the job site.
Put your labor elsewhere and let SCAFCO provide a perfect curved wall with structural strength and no flat spots.
Quick installation decreases layout time and reduces project schedule considerably.
As soon as it’s delivered, set in place, anchor it down, and you’re done.

Available in a variety of sizes with guaranteed accuracy

Get matching curves top and bottom within 1/32” in 12 feet.
Available in a variety of thicknesses, from 33 mil (20 gauge) to 97 mil (12 gauge) track.
SCAFCO will guarantee a solid and unmatched product.

Using SCAFCO Perfect-Curve Wall products assures the architect’s vision is delivered while saving the contractor an immense amount of time over traditional methods.

Structural rivets spaced as required to meet load requirements.

Material Composition

Mill certified steel
ASTM A653/A653M
33 mil
– 33 ksi yield strength
– 45 ksi tensile strength
– G60/G90 galvanized coating
– Steel rivet assembly only
43 mil
– 33 ksi yield strength
– 45 ksi tensile strength
– G60/G90 galvanized coating
– Steel rivet or welded assembly
54 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
– Steel rivet or welded assembly
68 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
– Steel rivet or welded assembly
97 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
– Welded assembly only

Order Forms

Curved Track Order Form

Arched Track Order Form

Circle Track Order Form

Curved Angle Order Form

Curved Z Track Order Form

Arched Z Track Order Form

Stretch Form Order Form

The post ‘Perfect Curve’ Curved Products appeared first on SCAFCO Steel Stud Company.

Custom Brake Shapes to 24′

jake_douville — Fri, 22 Sep 2017 20:18:02 +0000

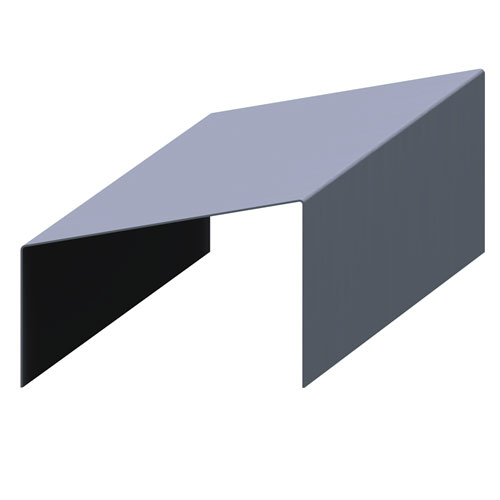

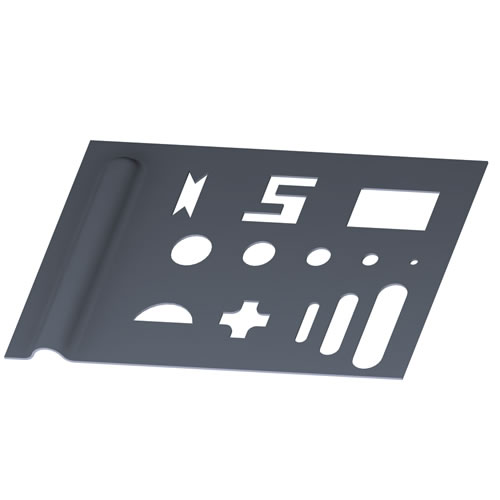

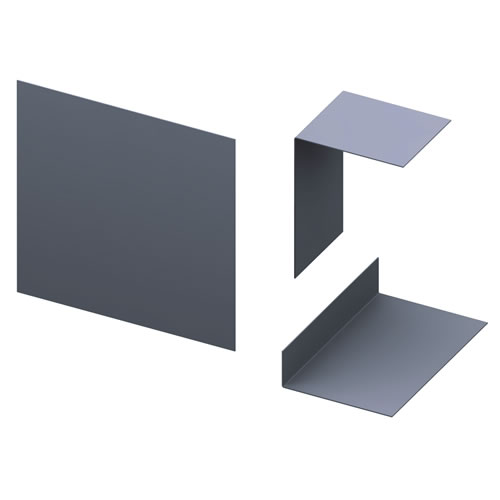

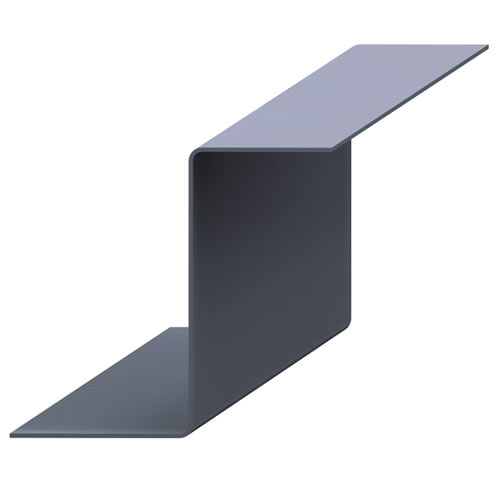

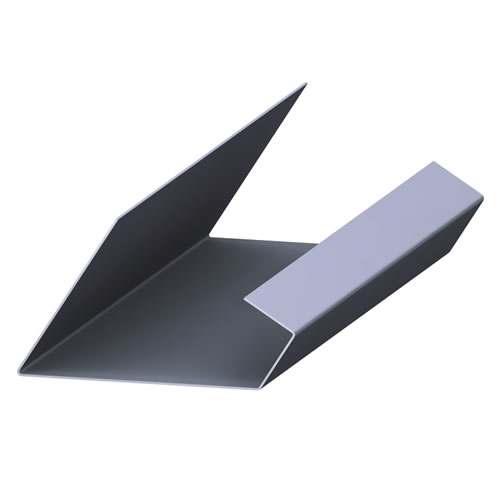

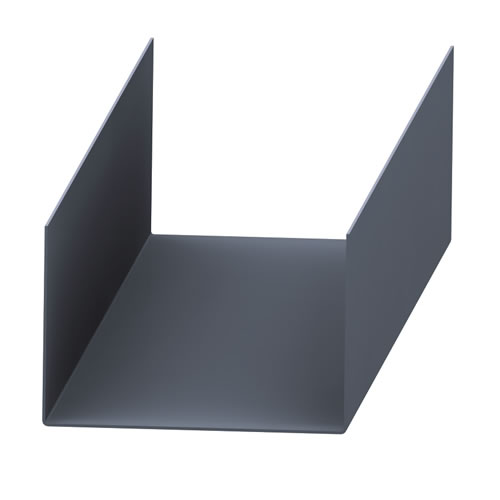

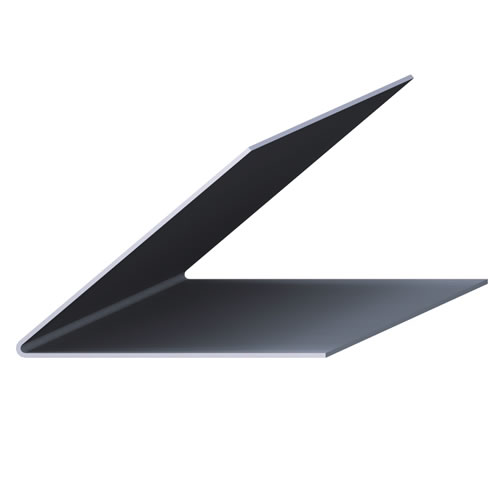

SCAFCO offers a broad selection of custom brake shapes for a wide range of construction applications. Each shape is custom made with advanced forming equipment to match the precise dimensions needed.

When ordering custom brake shapes, identify inside and outside measurements, as well as any angles or punchouts required.

Submittal Download

Features & Benefits

Corrosion resistant galvanized coated steel
Manufactured exclusively to drawings and specifications
Flat stock sheets available

Material Composition

Mill certified steel
ASTM: A653/A653M
30EQD
– 57 ksi yield strength
– 65 ksi tensile strength
– G40/G60 galvanized coating
30 mil
– 33 ksi yield strength
– 45 ksi tensile strength
– G40 galvanized coating
33EQS
– 57 ksi yield strength
– 65 ksi tensile strength
– G60 galvanized coating
33 mil
– 33 ksi yield strength
– 45 ksi tensile strength
– G60/G90 galvanized coating
43EQS
– 57 ksi yield strength
– 65 ksi tensile strength
– G60 galvanized coating

43 mil
– 33 ksi yield strength
– 45 ksi tensile strength
– G60/G90 galvanized coating
54 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
68 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
97 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G60/G90 galvanized coating
118 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G90 galvanized coating
127 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G90 galvanized coating

The post Custom Brake Shapes to 24′ appeared first on SCAFCO Steel Stud Company.

Ponywall Support

jake_douville — Thu, 21 Sep 2017 20:20:16 +0000

SCAFCO’s Ponywall supports are manufactured from prime domestic steel and assembled with certified welds, providing superior strength and durability. Their unique rigid design and ease of installation makes them the preferred choice over conventional Ponywall construction methods. Ponywall supports are stocked in 34″, 48″, and 60″ heights but can be special ordered to meet required design specifications.

Features

Pre-punched guide holes
Standard heights are 34″, 48″, and 60″
Custom heights available
Welded construction

Submittal Download

Material Composition

Mill certified steel
ASTM A653/A653M

Support
– 97 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G90 galvanized coating

Base Plate
– 168 mil
– 57 ksi yield strength
– 65 ksi tensile strength
– G115 galvanized coating

Diagrams

The post Ponywall Support appeared first on SCAFCO Steel Stud Company.

SoundGuard™ Silent Steel Framing System

jake_douville — Wed, 20 Sep 2017 20:59:15 +0000

The SoundGuard Silent Steel Framing System is a patented interior framing system specifically designed to easily construct partition walls with high STC ratings. Invented and designed by a contractor, the SoundGuard system was created to save labor on construction and achieves excellent sound rating numbers.

The control of noise and vibration is essential for health, safety, environment, and quality. SoundGuard Framing System is expertly designed to provide a practical and cost effective solution to noise control. SCAFCO manufactures a complete line of acoustical framing studs and track to meet noise requirements and to help solve many noise problems. SoundGuard studs and track assemble quickly to provide complete or partial walls for residential condos, apartments, conference rooms, equipment rooms, hospitals, and more.

SoundGuard Brochure

SoundGuard Major Projects

Features & Benefits

Labor saving from traditional construction of two separate walls
Increased STC ratings resulting from sound dampening material
UL Rated (V463 & W475), Achieves 1 and 2 Hour Fire Rating (ASTM E119)
Eliminate layers of GWB while maintaining STC Ratings
Compatible with Slotted Track

Sound Rating Data

Single Layer 5/8″ Type X GWB 1×1 Application
Wall Size	Application	STC Rating
3⅝” Wall	2 – 1 5/8″ Studs, Single GWB each side, R-13 Insulation	52*
4″ Wall	2 – 1 5/8” Studs, Single GWB each side, R-13 Insulation	52*
6″ Wall	2 – 2 1/2” Studs, Single GWB each side, R-19 Insulation	52*
6″ WIDE FOAM Wall	2 – 1 5/8” Studs, Single GWB each side, R-13 Insulation	52*

*Based on 4″ Wall Testing

Unbalanced 5/8″ Type X GWB 2×1 Application
Wall Size	Application	STC Rating
3⅝” Wall	2 – 1 5/8” Studs, Single GWB one side, Double GWB other side, R-13 Insulation	57*
4″ Wall	2 – 1 5/8” Studs, Single GWB one side, Double GWB other side, R-13 Insulation	57*
6″ Wall	2 – 2 1/2” Studs, Single GWB one side, Double GWB other side, R-19 Insulation	57*
6″ WIDE FOAM Wall	2 – 1 5/8” Studs, Single GWB one side, Double GWB other side, R-13 Insulation	57*

*Based on 4″ Wall Testing

Double Layer 5/8″ Type X GWB 2×2 Application
Wall Size	Application	STC Rating
3⅝” Wall	2 – 1 5/8” Studs, Double GWB each side, R-13 Insulation	60*
4″ Wall	2 – 1 5/8” Studs, Double GWB each side, R-13 Insulation	60*
6″ Wall	2 – 2 1/2” Studs, Double GWB each side, R-19 Insulation	60*
6″ WIDE FOAM Wall	2 – 1 5/8” Studs, Double GWB each side, R-13 Insulation	60*

*Based on 4″ Wall Testing

Patent #9,523,197 B2 U.S.A.

The post SoundGuard™ Silent Steel Framing System appeared first on SCAFCO Steel Stud Company.

Serenity-RC-Plus

jake_douville — Tue, 19 Sep 2017 21:47:35 +0000

Serenity-RC-Plus is a premium product and the most cost effective solution for reducing the transmission of airborne sound through walls and ceilings. By separating the drywall from the stud flange, the channel minimizes the direct path by which sound travels through the framing.

SCAFCO’s Serenity-RC-Plus was professionally sound tested at Riverbank Acoustical Laboratories, one of the leading and longest-standing acoustical testing facilities in the United States. Acoustical testing for the STC performance of Serenity-RC-Plus proved the product’s ability to provide high-end sound performance for both steel and wood framed assemblies, well above other high-end RC products available.

Serenity-RC-Plus Brochure

Testing

Riverbank Acoustical Laboratories

Sound assemblies are constructed, thoroughly inspected, and then certified by Riverbank Acoustical Laboratories. NVLAP accredited for ASTM E90-09 & E413-10, ISO Certified.

Riverbank Acoustical Laboratories is accredited by the US department of commerce, National Voluntary Laboratory Accreditation Program (NVLAP Lab Code 100227-0) to ISO 17025:2005 laboratory quality management and specific acoustical test standards.

SSA Acoustics

SSA Acoustics, a leader in engineering acoustics and multi-family residential design for 17 + years, has conducted extensive testing and research on SCAFCO’s Serenity Resilient Channel.

SSA’s team of acoustical consultants and lab technicians tested Serenity-RC-Plus for isolation efficiency and in-field performance. When comparing the results gathered to those of other products within the industry, the team found that Serenity-RC-Plus is the superior product for reducing airborne transmission in walls and ceilings for both wood and steel assemblies.

Serenity-RC-Plus consistently measured better than its competitors in isolation and efficiency tests, both critical to obtaining elevated STC (Sound Transmission Class) performance. SSA’s group of highly-qualified consultants continue to research, develop, and test the product to ensure it meets all required sound specifications.

The all-around performance of Serenity-RC-Plus impressed Bill Stewart, the managing partner of SSA Acoustics:

The superior performance of Serenity-RC-Plus in lab and field testing is un-matched. Recommended as our basis of design in all resilient channel applications”

Profile Features

Serenity-RC-Plus has been engineered, with help from the acoustical community, to include the following features that reduce sound transmission through the assembly.

Slot and Hole Pattern

1¼” x 5/16″ Slots
3/16″ (#8 Screw) Holes
Slots and holes are aligned to increase the path that sound must travel through the assembly
2” Slot spacing along the channel allows for wall and ceiling framing at almost any spacing conditions including the typical 12” o.c, 16” o.c, and 24” o.c

Stiffening Ribs

1/16″ Raise stiffening ribs
Creates separation and air space between sheathing and framing stud
Only 2 points of contact between sheathing and framing stud, decreases area for sound transmission

Serenity Knurling

Stiffens attachment flange to create gap between sheathing
Aids in positive screw attachment through thin acoustical steel profile

Steel and Wood Wall Sound Testing Results

Receiving Room Side	Source Room Side	Insulation Type	Stud spacing	STC Rating
Receiving Room Side	Source Room Side	Insulation Type	Stud spacing	Steel Studs^1,2	2×4 Wood³	2×6 Wood³
5/8″ Type X GWB (single layer)	5/8″ Type X GWB (single layer) with RC	R-13	24″ OC	52	46	48
5/8″ Type X GWB (single layer)	5/8″ Type X GWB (double layer) with RC	R-13	24″ OC	58	53	53
5/8″ Type X GWB (double layer)	5/8″ Type X GWB (double layer) with RC	R-13	24″ OC	61	58	58

3 5/8″ Supreme stud used for Steel Stud Tests
RAL TL 15-235,236,237
RAL TL 16-406, 407, 408, 409, 410, 411

The post Serenity-RC-Plus appeared first on SCAFCO Steel Stud Company.

I-Stud Shaftwall System

jake_douville — Tue, 19 Sep 2017 23:19:02 +0000

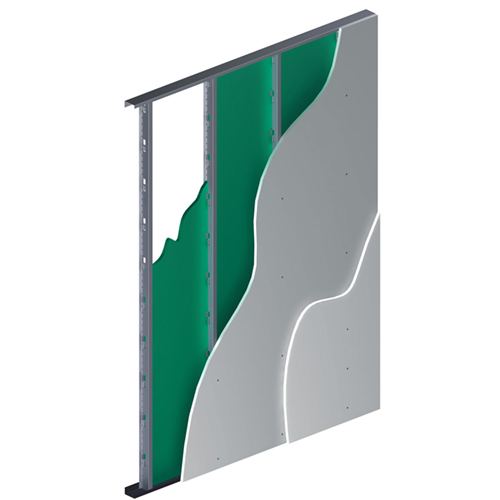

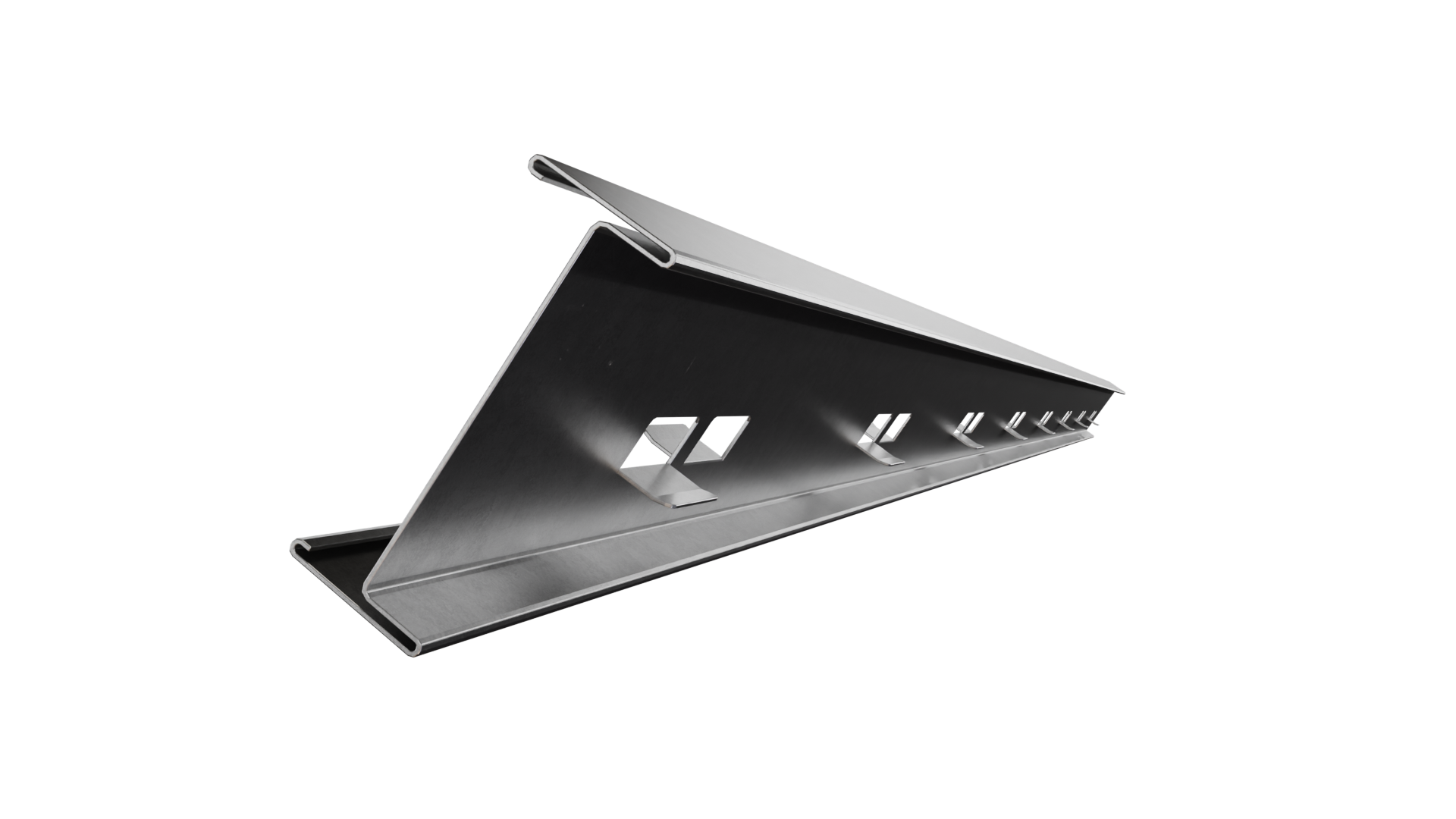

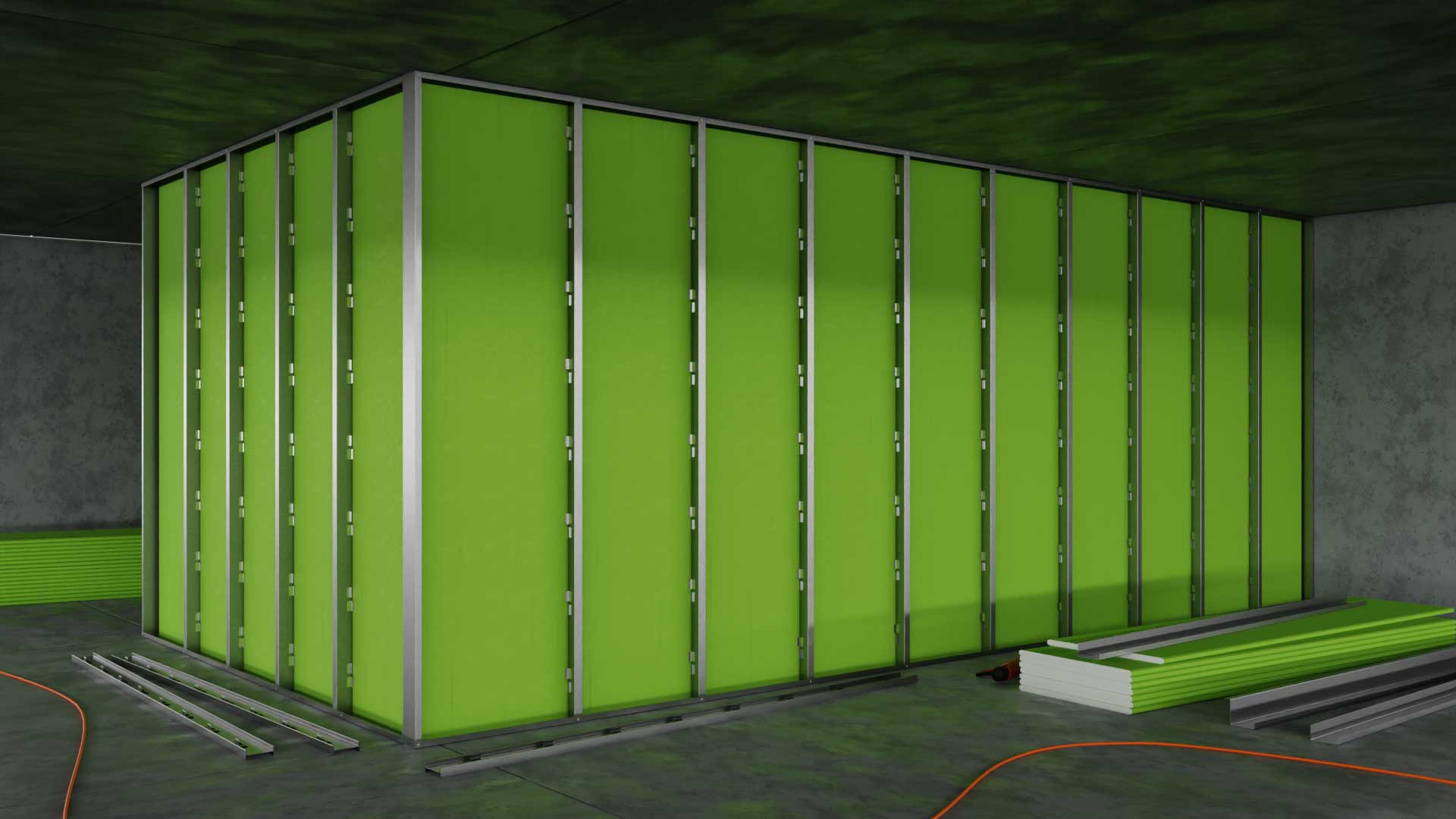

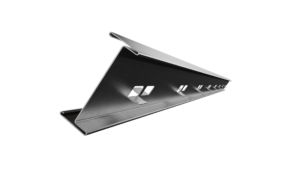

SCAFCO has engineered and designed the I-Stud Shaftwall System to friction fit with ease.

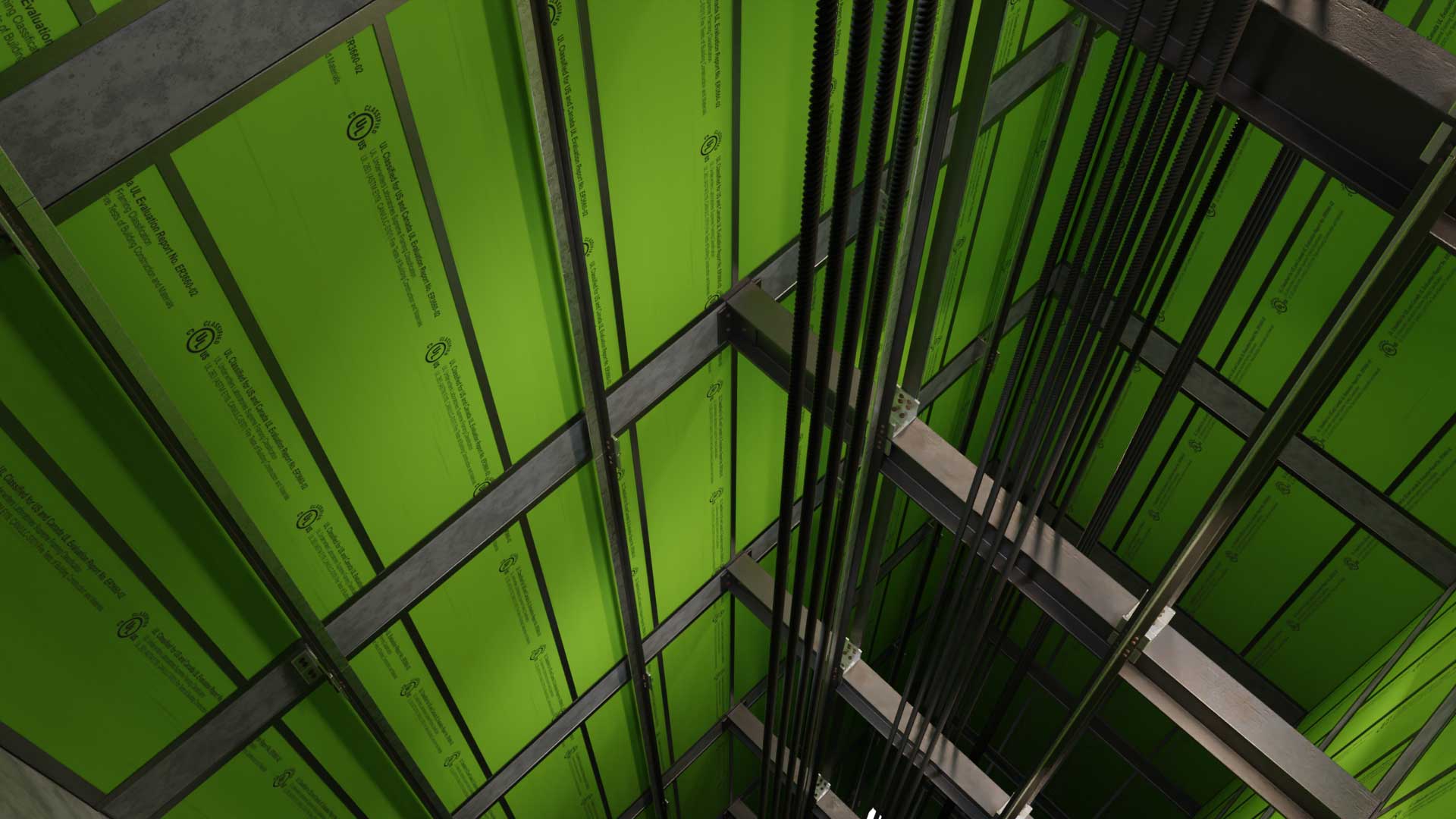

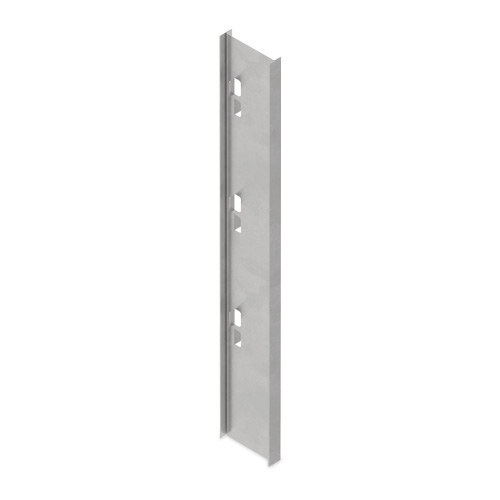

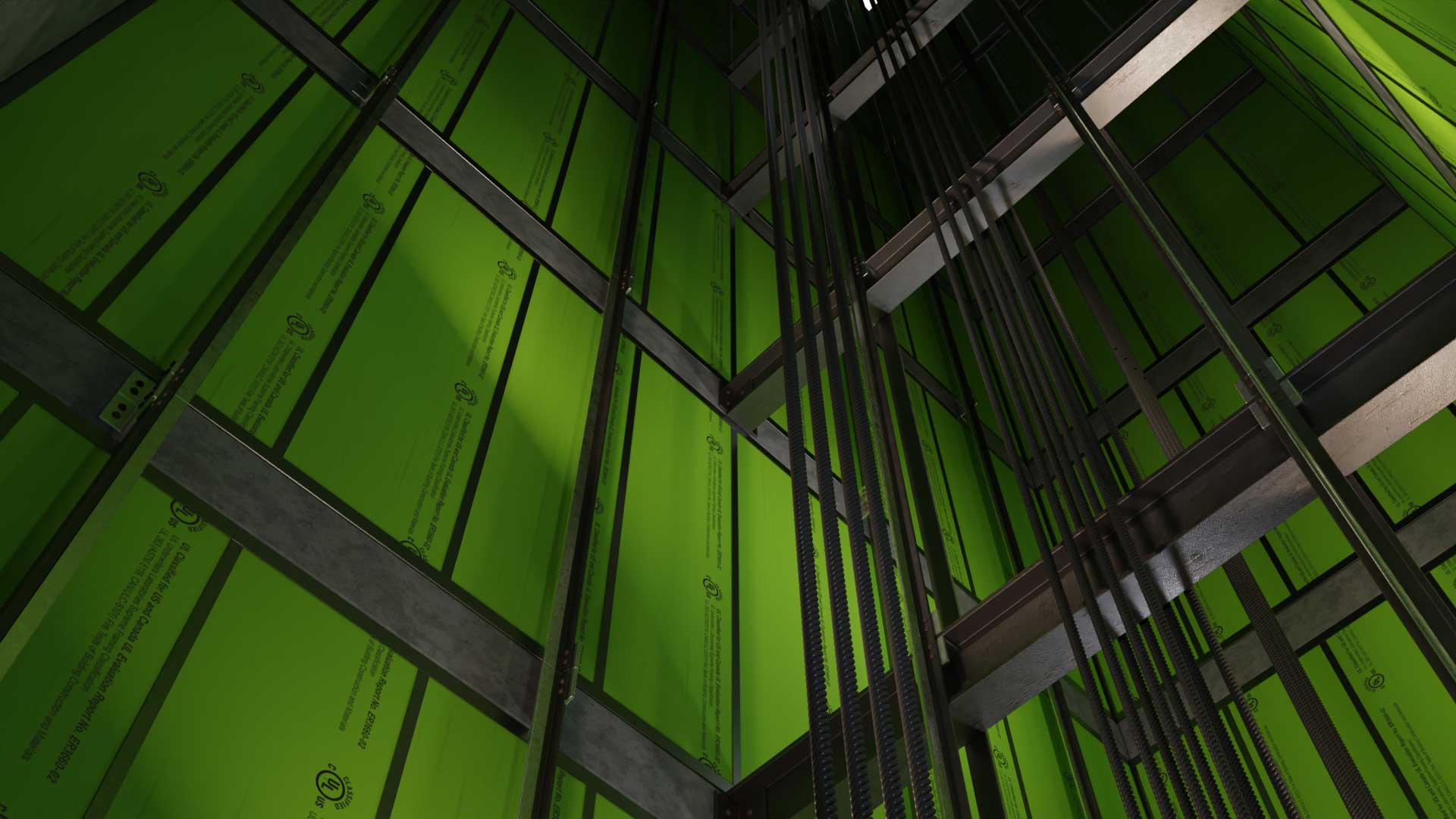

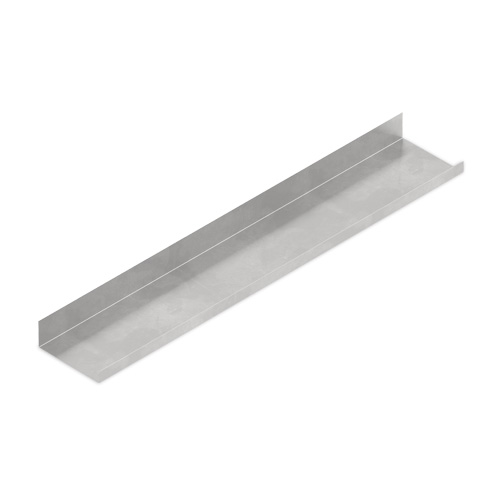

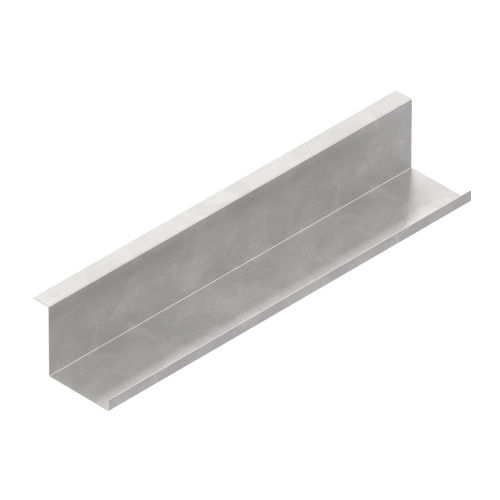

Cut-to-length and ready to install, the I-Stud paired with J-Track or JL-Corner creates an exceptional safety and performance system. The I-Stud is compatible with the gypsum Shaftliner boards of most major companies and is contractor preferred.

Shaftwall is used to enclose elevator shafts, stairwalls, air-return shafts, mechanical shafts, horizontal membranes and other non-protected floor openings in hotels, office buildings, hospitals, and other large buildings.
