]]> When choosing a supplier, quality materials are a top priority. That’s why SCAFCO steel framing products are manufactured from 100% prime mill certified steel. SCAFCO’s products exceed industry standards as they are manufactured from 57 ksi steel in place of 50 ksi and G90 in place of G60 for 68 mil and heavier.

Applications

  • Non-load-bearing exterior curtain walls
  • Axial load-bearing interior and exterior walls
  • Interior non-load-bearing walls
  • Floor joists and headers
  • Rafters, purlins, and girts
thumbnail of SCAFCO_Technical_Guide_with_SFS

Download Product Technical Guide



Steel Framing Sizing

Standard Web Sizes

  • 1-5/8″
  • 2-1/2″
  • 3-1/2″
  • 3-5/8″
  • 4″
  • 5-1/2″
  • 6″
  • 8″
  • 10″
  • 12″
  • 14″
  • 16″

Flange Sizes

  • 1-1/4″
  • 1-3/8″
  • 1-5/8″
  • 2″
  • 2-1/2″
  • 3″
  • 3-1/2″

Thicknesses and Coatings

Steel Framing Thickness  Table
Designation Thickness
(mils)		 Minimum Thickness
(in)		 Design Thickness  (in) Design Inside Corner Radii
(in)		 Galvanized
Thickness		 Reference Only
Gauge  No
25EQ

0.0147

0.0155

0.0860

 G40 25
18 0.0179 0.0188 0.0843 G40 25
20EQ 0.0179 0.0188 0.0844 G40 20 – Drywall
30EQD

0.0223

0.0235

0.0820

 G40 20 – Drywall
30 0.0296 0.0312 0.0781 G40 20 – Drywall
33EQS

0.0280

0.0295

0.0790

 G60 20 – Structural
33 0.0329 0.0346 0.0764 G60 20 – Structural
43EQS

0.0380

0.0400

 0.0712 G60 18
43 0.0428 0.0451 0.0712 G60 18
54 0.0538 0.0566 0.0849 G60 16
68 0.0677 0.0713 0.1069 G60 14
97 0.0966 0.1017 0.1525 G60 12
118 0.1180 0.1242 0.1863 G90 10
127

0.1270

0.1337

0.2005

 G90 10

AISI and ASTM Code Standards

  • AISI’s North American Specification for the Design of Cold-Formed Steel Structural Members
  • A653 – Standard specification for steel sheet, zinc-coated (galvanized) by the hot-dip process
  • A1003 – Standard specification for steel sheet, carbon, and metallic-coated for cold-formed framing members
  • C645 – Standard specification for nonstructural steel framing members
  • C754 – Standard specification for installation of steel framing members to receive screw-attached gypsum panel products
  • C955 –  Standard specification for load-bearing (transverse and axial) steel studs, runners (tracks), and bracing or bridging for screw application of gypsum panel products and metal plaster bases
  • E72 –  Standard test methods of conducting strength tests of panels for building construction
  • E90 – Standard test method for laboratory measurement of airborne sound transmission loss of building partitions and elements
  • E119 – Standard test methods for fire tests of building construction and materials

Order Form

  Steel Framing Order Form

The post Steel Framing Studs and Track appeared first on SCAFCO Steel Stud Company.

]]> Supreme Framing System https://www.scafco.com/steel/products/studs-track-furring/supreme-framing-system/ Mon, 25 Sep 2017 23:13:15 +0000 http://new.scafco.com/?page_id=56 Technical Information Sizing Standard Web Sizes 1-5/8″ 2-1/2″ 3-1/2″ 3-5/8″ 4″ 5-1/2″ 6″ 8″ Flange Sizes 1-1/4″ 1-7/16″ 1-5/8″ 2″ Thicknesses and Coatings Steel Framing Thickness  Table Designation Thickness (mils) Minimum Thickness (in) Design Thickness (in) Design Inside Corner Radii (in) Galvanized Thickness D20 0.0179 0.0188 0.0844 G40 30EQD 0.0223 0.0235 0.0820 G40 33EQD 0.0223 […]

The post Supreme Framing System appeared first on SCAFCO Steel Stud Company.

]]> Supreme Framing System™ stud and track is a design that uses thinner steel, larger flange and return lip, and superior 57 ksi yield strength when compared to traditional material. Supreme Framing System™ is available nationally through multiple independent steel stud manufacturers.

SFS Catalog Download

Applications

  • 2012 and 2015 IBC compliant
  • Multiple UL approved fire-rated assemblies
  • Excellent acoustical performance
  • 57 ksi steel to reduce screw stripping
  • Wider flanges for screw placement
  • Full line of Supreme Framing accessories
    – Hat Channel and Z-Furring
    – Slotted Track
    – Custom Brake Shapes

Technical Information

Sizing

Supreme Framing System

Standard Web Sizes

  • 1-5/8″
  • 2-1/2″
  • 3-1/2″
  • 3-5/8″
  • 4″
  • 5-1/2″
  • 6″
  • 8″

Flange Sizes

  • 1-1/4″
  • 1-7/16″
  • 1-5/8″
  • 2″

Thicknesses and Coatings

Steel Framing Thickness  Table
Designation Thickness
(mils)		 Minimum Thickness
(in)		 Design Thickness
(in)		 Design Inside Corner Radii
(in)		 Galvanized
Thickness
D20 0.0179 0.0188 0.0844 G40
30EQD 0.0223 0.0235 0.0820 G40
33EQD 0.0223 0.0235 0.0820 G60
33EQS 0.0280 0.0295 0.0790 G60
43EQS 0.0380 0.0400 0.0712 G60

AISI and ASTM Code Standards

  • AISI’s North American Specification for the Design of Cold-Formed Steel Structural Members
  • A653 – Standard specification for steel sheet, zinc-coated (galvanized) by the hot-dip process
  • A1003 – Standard specification for steel sheet, carbon, and metallic-coated for cold-formed framing members
  • C645 – Standard specification for nonstructural steel framing members
  • C754 – Standard specification for installation of steel framing members to receive screw-attached gypsum panel products
  • C955 –  Standard specification for load-bearing (transverse and axial) steel studs, runners (tracks), and bracing or bridging for screw application of gypsum panel products and metal plaster bases
  • E72 –  Standard test methods of conducting strength tests of panels for building construction
  • E90 – Standard test method for laboratory measurement of airborne sound transmission loss of building partitions and elements
  • E119 – Standard test methods for fire tests of building construction and materials

Order Form

  Steel Framing Order Form

The post Supreme Framing System appeared first on SCAFCO Steel Stud Company.

]]> Corner Stud https://www.scafco.com/steel/products/studs-track-furring/corner-stud/ Sun, 24 Sep 2017 20:24:53 +0000 https://www.scafco.com/?page_id=2498 The post Corner Stud appeared first on SCAFCO Steel Stud Company.

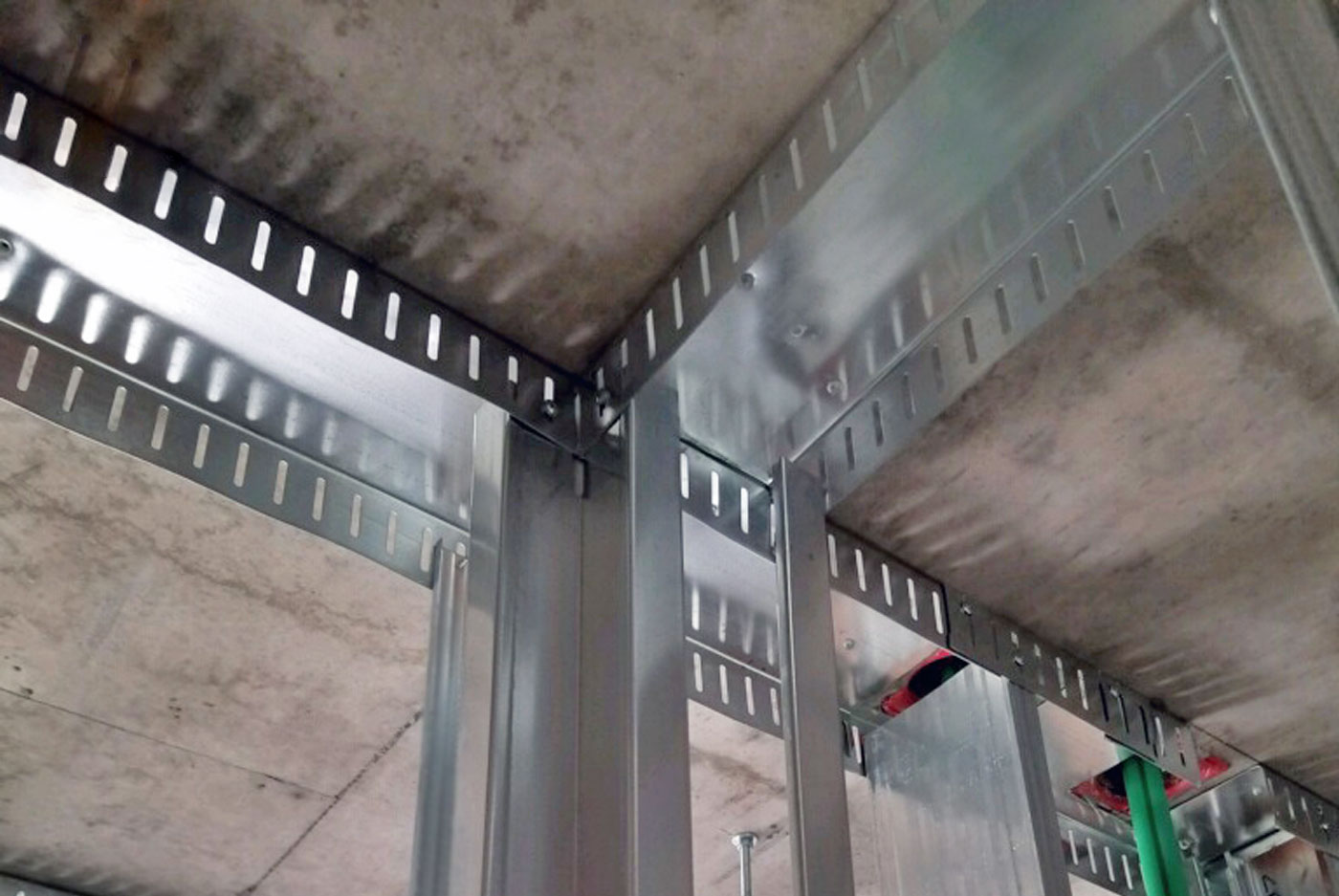

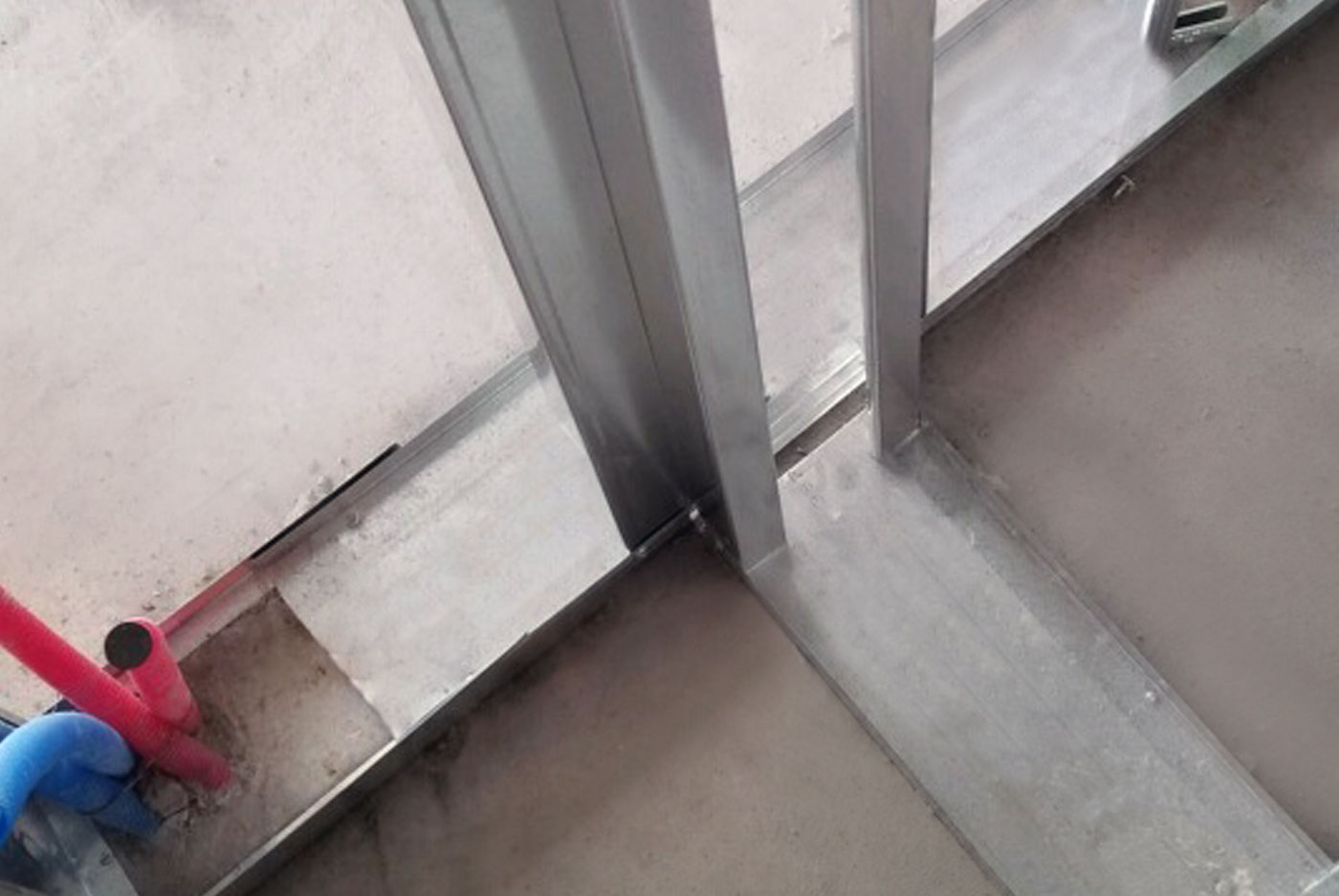

]]> SCAFCO’s corner studs create a more efficient assembly. By reducing the number of components involved, these studs saves time on installation and finishing, which leads to quicker, more straightforward project completion.

In addition to lightening the burden on contractors and owners, these corner studs also offer unparalleled safety and efficiency on the jobsite. Crews won’t need to worry about sharp edges, back screwing, or locating slider studs, and once in place, SCAFCO corner studs provide strong taper support.

Features

  • 30 EQD up to 54 mil
  • Up to 24’ height
  • Efficient use of material saves labor on the jobsite
  • Reduced number of components saves time on installation and finishing
  • Inside Corners
  • JL Corner for shaftwall assemblies

Top Slot

Bottom Slot

SCAFCO Corner Stud
