]]> The Web Stiffener Track (WST) prevents web crippling in critical load connections in joists or wall studs. The WST is thoroughly engineered and includes a strengthened rib and specific layout of pre-punched guide holes for ultimate reinforcing.

WST Clip

Features

  • Pre-punched guide holes for quick attachment to structure and stud
  • Available in a variety of different lengths to fit all standard studs and joist sizes
  • Prevents web crippling
  • One-piece assembly
thumbnail of WST

WST Submittal Download

Material Composition

  • ASTM A653/A653M
  • Material thickness: 68 mil
  • Yield strength: 57 ksi
  • G90 hot-dipped galvanized coating

Nomenclature

WST Clip Nomenclature

Gallery

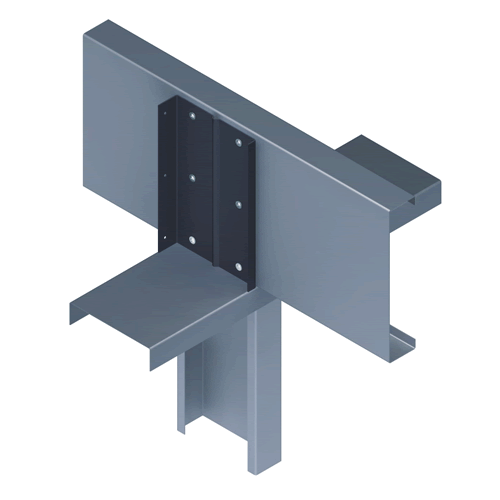

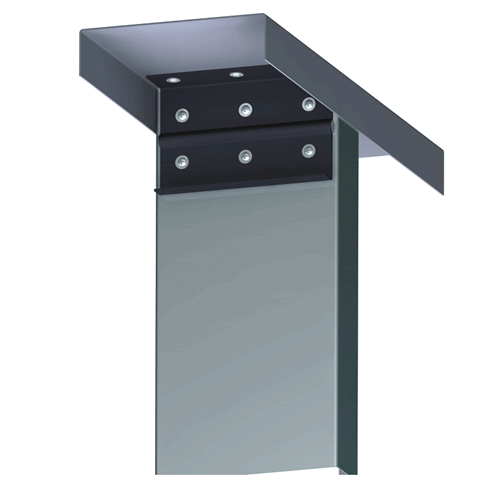

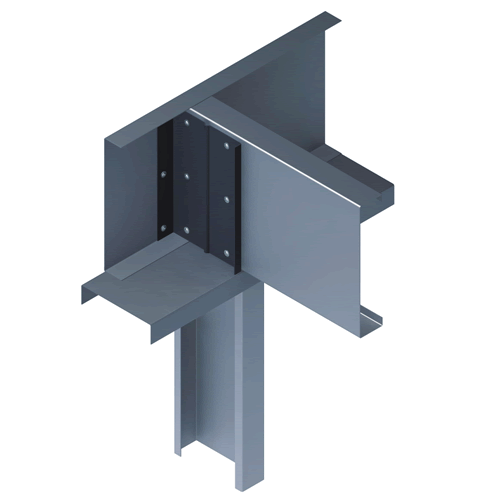

WST Clip WST Clip WST Clip WST Clip

Order Information

Model No. Dimensions Stud
Width
W H
600WST350 3 ½” 5 ⅝” 6”
800WST350 3 ½” 7 ⅝” 8”
1000WST350 3 ½” 9 ⅝” 10”
1200WST350 3 ½” 11 ⅝” 12”
1400WST350 3 ½” 13 ⅝” 14”
600WST600 6” 5 ⅝” 6”
800WST600 6” 7 ⅝” 8”
1000WST600 6” 9 ⅝” 10”
1200WST600 6” 11 ⅝” 12”
1400WST600 6” 13 ⅝” 14”

The post WST – Web Stiffener Track appeared first on SCAFCO Steel Stud Company.

]]> KB – Wall Support Backing Kwik-Back https://www.scafco.com/steel/products/backing-blocking-stiffeners/kb-wall-support-backing-kwik-back/ Wed, 25 Oct 2017 22:09:58 +0000 http://new.scafco.com/?page_id=511 Gallery Allowable Loads Part No. Stud Properties F1 Allowable Loads (lbs) F3 Allowable Loads (lbs) Mil Gauge Fy (ksi) 2 #8 Screws 3 #8 Screws 2 #8 Screws 3 #8 Screws KB 18 25 33 79 118 132 197 20EQ 20 57 114 170 190 285 30EQD 20 57 142 213 266 398 30 20 […]

The post KB – Wall Support Backing Kwik-Back appeared first on SCAFCO Steel Stud Company.

]]> Kwik-Back (KB) products are the most cost effective and labor saving solution for creating superior backing support for wall shelving, cabinetry, heavy wall hangings, and other equipment.

Installation is simplified by using three screws and attaching the clip to the stud flange. No predetermined stud layout is required and ledge tabs are added for easy alignment. Attach 2″ x 6″ structure grade lumber (#1 or better) as required by codes or specifications.

KB Clip

Features

  • Loads based on #8 screws
    • Screws are provided
  • Pre-punched guide holes
  • Folded tabs for consistent wood positioning
thumbnail of KB

KB Submittal Download

Material Composition

  • ASTM A653/A653M
  • Material thickness: 33 mil
  • Yield strength: 33 ksi
  • G60 hot-dipped galvanized coating

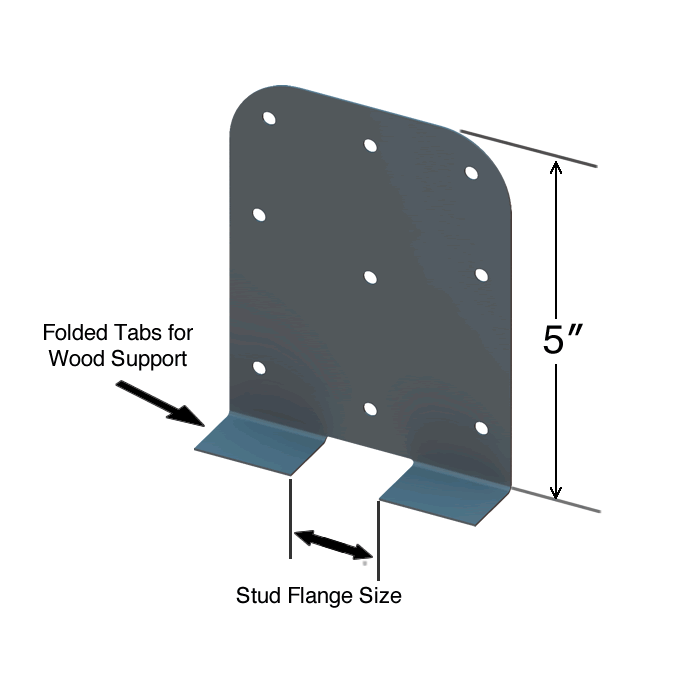

KB Clip

Gallery

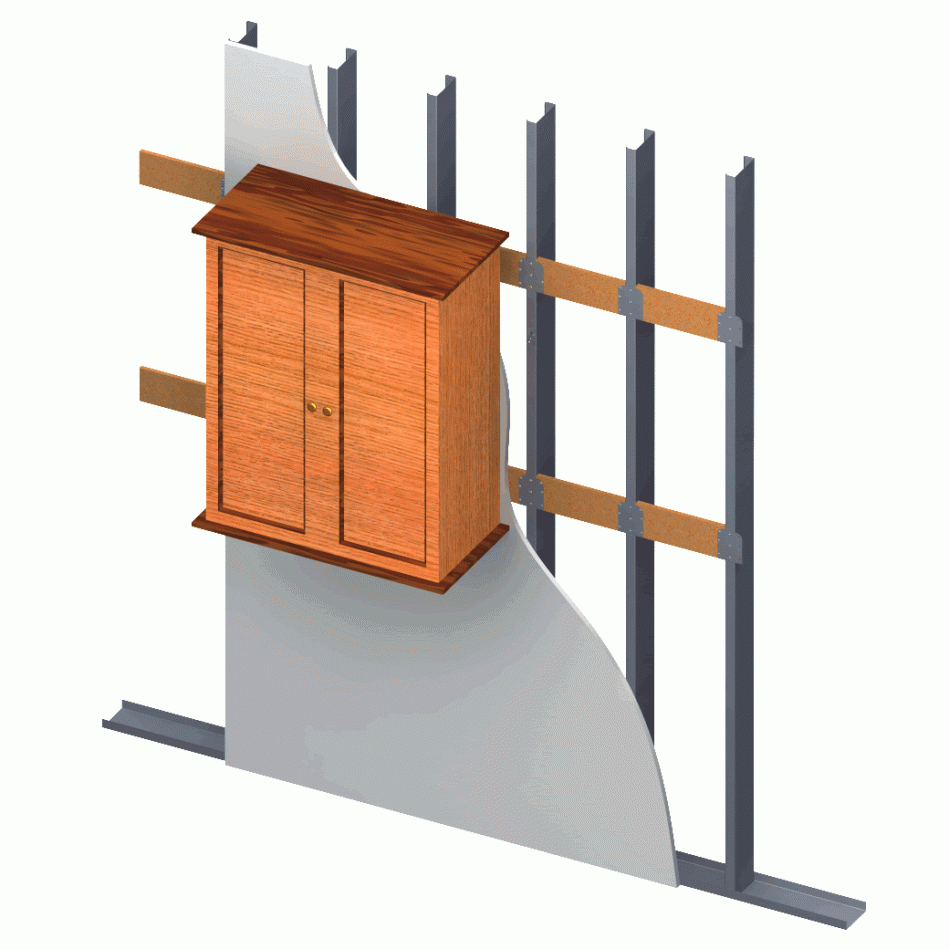

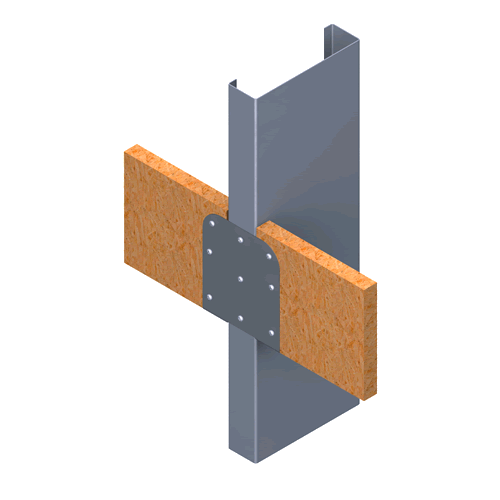

KB Assembly KB Assembly Detail KB

Allowable Loads

Part No. Stud Properties F1 Allowable Loads (lbs) F3 Allowable Loads (lbs)
Mil Gauge Fy (ksi) 2 #8 Screws 3 #8 Screws 2 #8 Screws 3 #8 Screws
KB 18 25 33 79 118 132 197
20EQ 20 57 114 170 190 285
30EQD 20 57 142 213 266 398
30 20 33 130 196 281 422
33EQS 20 (S) 57 178 267 373 560
33 20 (S) 33 145 217 328 493
43EQS 18 57 242 342 460 689
43 18 33 189 283 460 689
54 16 50 342 342 460 689

Screw shear values are based on the SSMA Screw Table with the following notes:

  1. Allowable loads have not been increased for wind, seismic activity, or other factors.
  2. The allowable loads are based on the steel properties of the members being connected, per AISI S100.
  3. The nominal strength of the screw must be at least 3.75 times the allowable loads.
  4. Values include a 3.0 factor of safety.
  5. Penetration of screws through joined materials should not be less than three exposed threads. Install and tighten screws in accordance with the screw manufacturer’s recommendations.
  6. Allowable loads indicated on the table(s) are for force in single direction only. The designer shall use the combined forces check as required by AISI S100 if more than one force is applied to the connection.

Quantity / Order Information

Model No. Flange Width Qty
/Bucket		 Lbs
/Bucket
KB162 1-1/4” to 1-5/8” 200 50
KB200 2″ 200 54

The post KB – Wall Support Backing Kwik-Back appeared first on SCAFCO Steel Stud Company.

]]> TB – Solid Track Blocking https://www.scafco.com/steel/products/backing-blocking-stiffeners/tb-solid-track-blocking/ Tue, 24 Oct 2017 23:41:48 +0000 http://new.scafco.com/?page_id=533 Quantity / Order Information Model No. Stud Dimensions Width * Flange Spacing TB250-*-S12-54 2 ½” 125/162/200 12” TB250-*-S16-54 2 ½” 125/162/200 16” TB250-*-S24-54 2 ½” 125/162/200 24” TB350-*-S12-54 3 ½” 125/162/200 12” TB350-*-S16-54 3 ½” 125/162/200 16” TB350-*-S24-54 3 ½” 125/162/200 24” TB362-*-S12-54 3 ⅝” 125/162/200 12” TB362-*-S16-54 3 ⅝” 125/162/200 16” TB362-*-S24-54 3 ⅝” […]

The post TB – Solid Track Blocking appeared first on SCAFCO Steel Stud Company.

]]> Solid Track Blocking (TB) provides horizontal bracing for studs and joists. The TB is thoroughly engineered for 12”, 16”, 24”, and custom stud layouts and has pre-punched guide holes for quick installation.

TB Clip

Features

  • A variety of different lengths offered to fit all standard stud and joist sizes
  • Available in 12”, 16”, and 24” spacing (special lengths available)
  • Custom lengths available upon request
  • Pre-punched quide holes for quick attachment
  • One-piece assembly
thumbnail of TB

TB Submittal Download

Material Composition

  • Mill certified steel
  • ASTM A653/A653M
  • 54 mil
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G60/G90 galvanized coating

Nomenclature

TB Clip Nomenclature

Quantity / Order Information

Model No. Stud Dimensions
Width * Flange Spacing
TB250-*-S12-54 2 ½” 125/162/200 12”
TB250-*-S16-54 2 ½” 125/162/200 16”
TB250-*-S24-54 2 ½” 125/162/200 24”
TB350-*-S12-54 3 ½” 125/162/200 12”
TB350-*-S16-54 3 ½” 125/162/200 16”
TB350-*-S24-54 3 ½” 125/162/200 24”
TB362-*-S12-54 3 ⅝” 125/162/200 12”
TB362-*-S16-54 3 ⅝” 125/162/200 16”
TB362-*-S24-54 3 ⅝” 125/162/200 24”
TB400-*-S12-54 4” 125/162/200 12”
TB400-*-S16-54 4” 125/162/200 16”
TB400-*-S24-54 4” 125/162/200 24”
TB600-*-S12-54 6” 125/162/200 12”
TB600-*-S16-54 6” 125/162/200 16”
TB600-*-S24-54 6” 125/162/200 24”
TB800-*-S12-54 8” 125/162/200 12”
TB800-*-S16-54 8” 125/162/200 16”
TB800-*-S24-54 8” 125/162/200 24”
TB1000-*-S12-54 10” 125/162/200 12”
TB1000-*-S16-54 10” 125/162/200 16”
TB1000-*-S24-54 10” 125/162/200 24”
TB1200-*-S12-54 12” 125/162/200 12”
TB1200-*-S16-54 12” 125/162/200 16”
TB1200-*-S24-54 12” 125/162/200 24”

The post TB – Solid Track Blocking appeared first on SCAFCO Steel Stud Company.

]]> FTB – Fire Track Blocking https://www.scafco.com/steel/products/backing-blocking-stiffeners/ftb-fire-track-blocking/ Mon, 23 Oct 2017 23:50:52 +0000 http://new.scafco.com/?page_id=539 Gallery Quantity / Order Information Model No. Stud Dimensions Width * Flange Spacing FTB250-*-S12-54 2 ½” 125/162/200 12” FTB250-*-S16-54 2 ½” 125/162/200 16” FTB250-*-S24-54 2 ½” 125/162/200 24” FTB350-*-S12-54 3 ½” 125/162/200 12” FTB350-*-S16-54 3 ½” 125/162/200 16” FTB350-*-S24-54 3 ½” 125/162/200 24” FTB362-*-S12-54 3 ⅝” 125/162/200 12” FTB362-*-S16-54 3 ⅝” 125/162/200 16” FTB362-*-S24-54 3 […]

The post FTB – Fire Track Blocking appeared first on SCAFCO Steel Stud Company.

]]> Fire Track Blocking (FTB) provides horizontal bracing for studs and joists. The FTB is thoroughly engineered for 12”, 16”, and 24” stud layouts and has pre-punched guide holes and precut flanges to fit the stud cavity for quick installation.

FTB Clip

Features

  • A variety of different lengths offered to fit all standard stud and joist sizes
  • Available in 12”, 16”, and 24” spacing
  • Custom lengths available upon request
  • Pre-punched guide holes for quick attachment
  • One-piece assembly
  • Fills the whole stud cavity
thumbnail of FTB

FTB Submittal Download

Material Composition

  • Mill certified steel
  • ASTM A653/A653M
  • 54 mil
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G60/G90 galvanized coating

Nomenclature

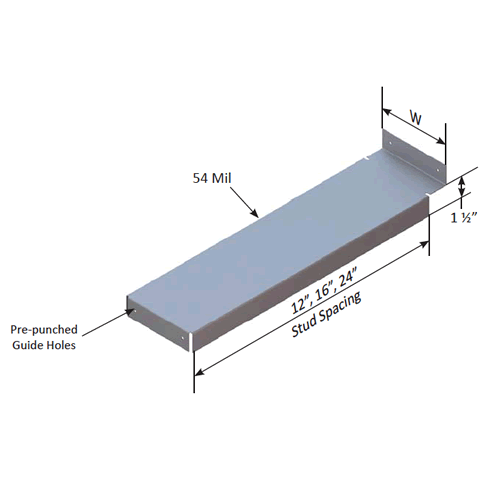

FTB Clip Nomenclature

Gallery

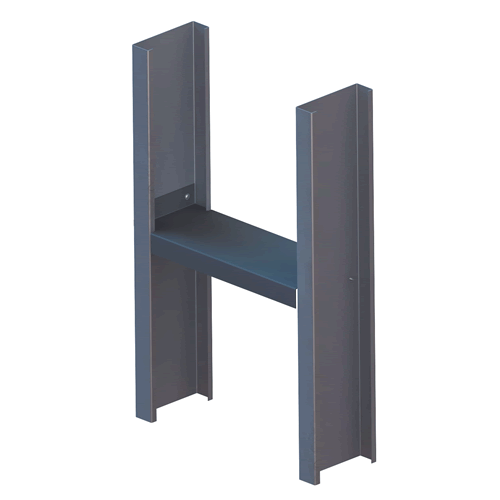

FTB FTB Clip FTB Clip

Quantity / Order Information

Model No. Stud Dimensions
Width * Flange Spacing
FTB250-*-S12-54 2 ½” 125/162/200 12”
FTB250-*-S16-54 2 ½” 125/162/200 16”
FTB250-*-S24-54 2 ½” 125/162/200 24”
FTB350-*-S12-54 3 ½” 125/162/200 12”
FTB350-*-S16-54 3 ½” 125/162/200 16”
FTB350-*-S24-54 3 ½” 125/162/200 24”
FTB362-*-S12-54 3 ⅝” 125/162/200 12”
FTB362-*-S16-54 3 ⅝” 125/162/200 16”
FTB362-*-S24-54 3 ⅝” 125/162/200 24”
FTB400-*-S12-54 4” 125/162/200 12”
FTB400-*-S16-54 4” 125/162/200 16”
FTB400-*-S24-54 4” 125/162/200 24”
FTB600-*-S12-54 6” 125/162/200 12”
FTB600-*-S16-54 6” 125/162/200 16”
FTB600-*-S24-54 6” 125/162/200 24”
FTB800-*-S12-54 8” 125/162/200 12”
FTB800-*-S16-54 8” 125/162/200 16”
FTB800-*-S24-54 8” 125/162/200 24”
FTB1000-*-S12-54 10” 125/162/200 12”
FTB1000-*-S16-54 10” 125/162/200 16”
FTB1000-*-S24-54 10” 125/162/200 24”
FTB1200-*-S12-54 12” 125/162/200 12”
FTB1200-*-S16-54 12” 125/162/200 16”
FTB1200-*-S24-54 12” 125/162/200 24”

The post FTB – Fire Track Blocking appeared first on SCAFCO Steel Stud Company.

]]> NS – Notched Stud Backing https://www.scafco.com/steel/products/backing-blocking-stiffeners/ns-notched-stud-backing/ Sun, 22 Oct 2017 18:13:54 +0000 http://new.scafco.com/?page_id=548 Gallery Section Properties 1/2″ Flange NS Section Properties – Per AISI Design Criteria Backing Member Thickness (mils) Thickness (ga) Depth (in) Flange (in) Fy (ksi) Ixe (min)(In4) Sxe (min)(In3) Iye (min)(In4) Sye (min)(In3) 4″, 33 mil 33 20 4 0.50 33 0.386 0.193 0.007 0.018 4″, 43 mil 43 18 4 0.50 33 0.495 0.248 […]

The post NS – Notched Stud Backing appeared first on SCAFCO Steel Stud Company.

]]> Notched Stud Backing (NS) is used for bracing and bridging of joists and wall studs in heavy load conditions. NS is also used in hospitals and schools as mechanical backing to provide superior support for equipment and cabinetry. Engineered section properties and allowable loads are provided based on 2004 AISI.

NS Clip

Features and Benefits

  • Available in widths of 4″, 6″, and 8″
  • Available in 12″, 16″, and 24″ stud spacing
  • Excellent for heavy load conditions
  • Pre-cut notches for flange attachment
  • Pre-punched guide holes
  • Eliminates field cutting
  • Provides bracing and bridging support
thumbnail of NS

NS Submittal Download

Material Composition

  • Mill certified steel
  • ASTM: A653/A653M
  • 33 mil
    – 33 ksi yield strength
    – 45 ksi tensile strength
    – G60/G90 galvanized coating
  • 43 mil
    – 33 ksi yield strength
    – 45 ksi tensile strength
    – G60/G90 galvanized coating
  • 54 mil
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G60/G90 galvanized coating
  • 68 mil
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G60/G90 galvanized coating



Nomenclature

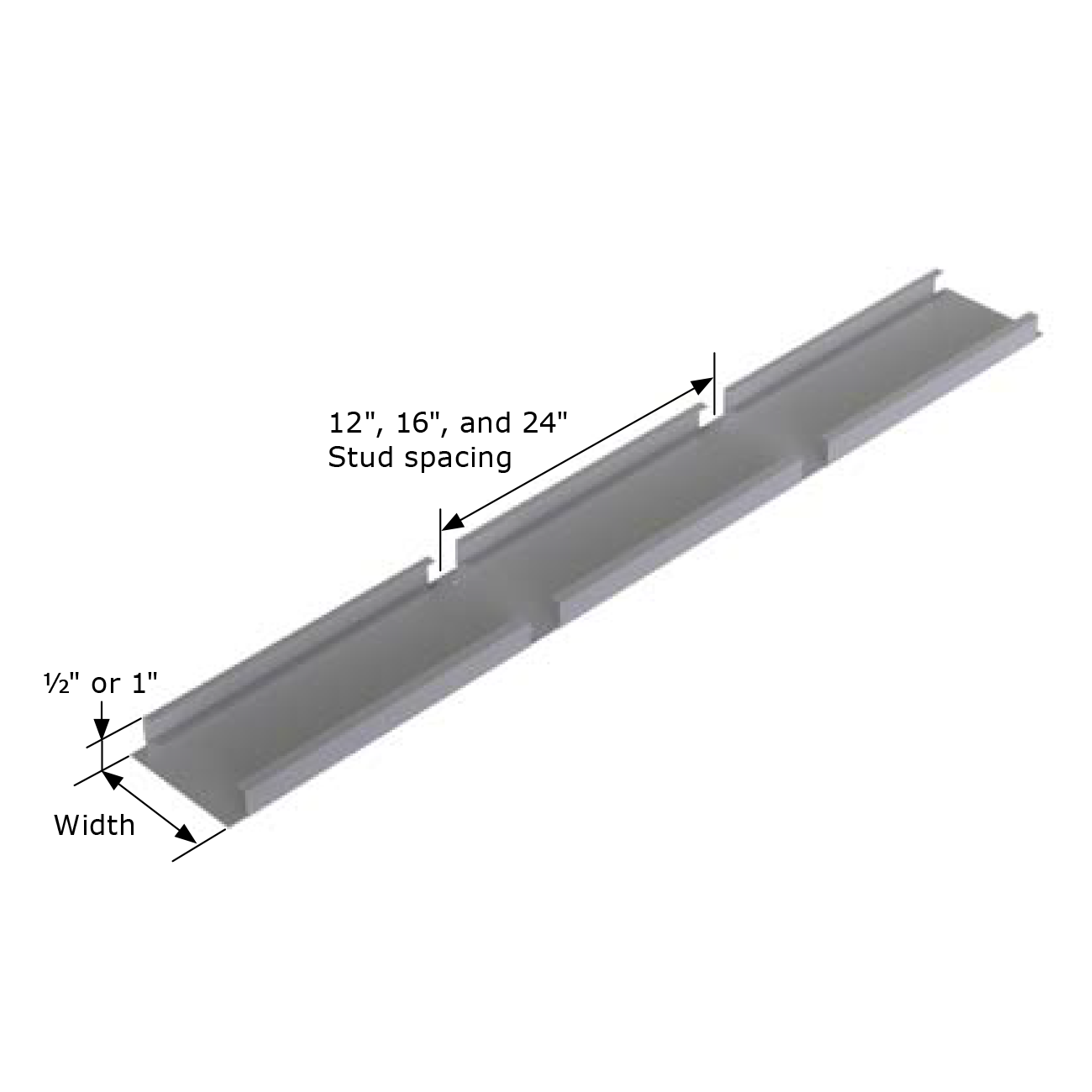

NS Clip Nomenclature

Gallery

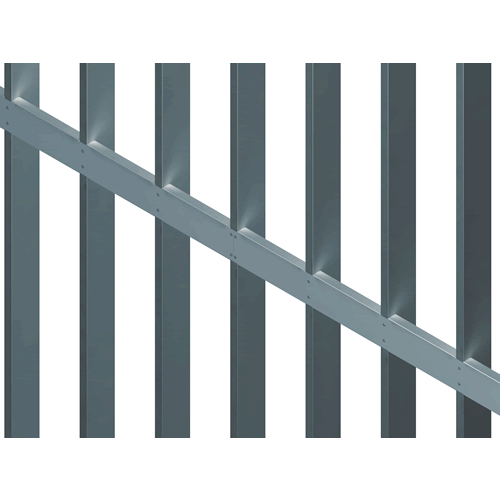

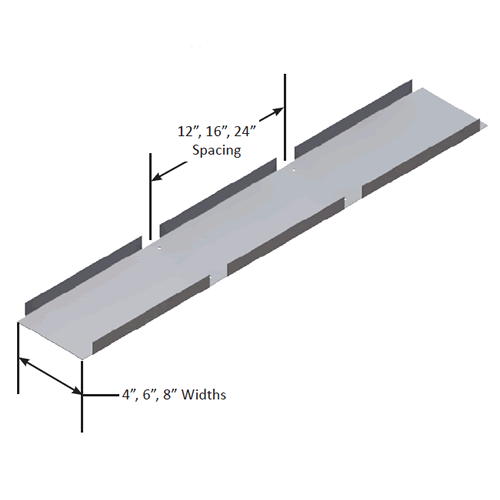

NS Clip NS Details

Section Properties

1/2″ Flange NS Section Properties – Per AISI Design Criteria
Backing
Member		 Thickness
(mils)		 Thickness
(ga)		 Depth
(in)		 Flange
(in)		 Fy
(ksi)		 Ixe (min)(In4) Sxe (min)(In3) Iye (min)(In4) Sye (min)(In3)
4″, 33 mil 33 20 4 0.50 33 0.386 0.193 0.007 0.018
4″, 43 mil 43 18 4 0.50 33 0.495 0.248 0.008 0.022
4″, 54 mil 54 16 4 0.50 50 0.603 0.301 0.009 0.025
4″, 68 mil 68 14 4 0.50 50 0.728 0.364 0.011 0.029
6″, 33 mil 33 20 6 0.50 33 1.085 0.357 0.007 0.018
6″, 43 mil 43 18 6 0.50 33 1.416 0.472 0.009 0.022
6″, 54 mil 54 16 6 0.50 50 1.736 0.579 0.010 0.026
6″, 68 mil 68 14 6 0.50 50 2.116 0.705 0.012 0.030
8″, 33 mil 33 20 8 0.50 33 2.214 0.526 0.007 0.018
8″, 43 mil 43 18 8 0.50 33 2.989 0.738 0.009 0.022
8″, 54 mil 54 16 8 0.50 50 3.727 0.932 0.011 0.026
8″, 68 mil 68 14 8 0.50 50 4.569 1.142 0.012 0.030
1″ Flange NS Section Properties – Per AISI Design Criteria
Backing
Member		 Thickness
(mils)		 Thickness
(ga)		 Depth
(in)		 Flange
(in)		 Fy
(ksi)		 Ixe (min)(in4) Sxe (min)(in3) Iye (min)(in4) Sye (min)(in3)
4″, 33 mil 33 20 4 1.00 33 0.522 0.261 0.033 0.046
4″, 43 mil 43 18 4 1.00 33 0.672 0.336 0.041 0.058
4″, 54 mil 54 16 4 1.00 50 0.823 0.411 0.050 0.070
4″, 68 mil 68 14 4 1.00 50 1.003 0.501 0.059 0.082
6″, 33 mil 33 20 6 1.00 33 1.371 0.445 0.036 0.047
6″, 43 mil 43 18 6 1.00 33 1.816 0.605 0.046 0.060
6″, 54 mil 54 16 6 1.00 50 2.236 0.745 0.056 0.072
6″, 68 mil 68 14 6 1.00 50 2.742 0.914 0.066 0.085
8″, 33 mil 33 20 8 1.00 33 2.687 0.626 0.037 0.047
8″, 43 mil 43 18 8 1.00 33 3.610 0.872 0.048 0.060
8″, 54 mil 54 16 8 1.00 50 4.492 1.092 0.058 0.072
8″, 68 mil 68 14 8 1.00 50 5.690 1.423 0.070 0.086

Allowable Loads

Part No. Stud Properties Vertical Pmax (lb) Spacing # Of Screws Required for Vertical Pmax Spacing Horizontal Pmax (lb) Spacing # Of Screws Required for Horizontal Pmax Spacing
Mil Gauge Fy (ksi) 12″ 16″ 24″ 12″ 16″ 24″ 12″ 16″ 24″ 12″ 16″ 24″
400NS050-*-S??-33 33 20 33 976 933 622 6 6 4 112 84 56 2 2 2
400NS050-*-S??-43 43 18 33 1740 1593 1062 7 7 5 144 108 72 2 2 2
400NS050-*-S??-54 54 16 50 3372 2934 1956 7 6 4 248 186 124 2 2 2
400NS050-*-S??-68 68 14 50 4716 3537 2358 10 8 5 284 213 142 2 2 2
600NS050-*-S??-33 33 20 33 638 638 638 4 4 4 112 84 56 2 2 2
600NS050-*-S??-43 43 18 33 1416 1416 1416 6 6 6 140 105 70 2 2 2
600NS050-*-S??-54 54 16 50 2823 2823 2706 6 6 6 248 186 124 2 2 2
600NS050-*-S??-68 68 14 50 5350 5268 3512 11 11 8 284 213 142 2 2 2
800NS050-*-S??-33 33 20 33 474 474 474 3 3 3 112 84 56 2 2 2
800NS050-*-S??-43 43 18 33 1051 1051 1051 3 4 4 144 108 72 2 2 2
800NS050-*-S??-54 54 16 50 2091 2091 2091 5 5 5 252 189 126 2 2 2
800NS050-*-S??-68 68 14 50 4221 4221 4221 9 9 9 288 216 144 2 2 2
400NS100-*-S??-33 33 20 33 976 976 860 6 6 5 288 216 144 4 3 2
400NS100-*-S??-43 43 18 33 1739 1739 1280 7 7 5 372 279 186 4 3 2
400NS100-*-S??-54 54 16 50 3372 3372 2398 7 7 5 680 510 340 4 3 2
400NS100-*-S??-68 54 16 50 4871 4533 3022 10 10 7 816 612 408 4 3 2
600NS100-*-S??-33 33 20 33 638 638 638 4 4 4 288 216 144 4 3 2
600NS100-*-S??-43 43 18 33 1416 1416 1416 6 6 6 376 282 188 4 3 2
600NS100-*-S??-54 54 16 50 2823 2823 2823 6 6 6 688 516 344 4 3 2
600NS100-*-S??-68 68 14 50 5350 5350 4554 11 11 10 828 621 414 4 3 2
800NS100-*-S??-33 33 20 33 474 474 474 3 3 3 292 219 146 4 3 2
800NS100-*-S??-43 43 18 33 1051 1051 1051 4 4 4 380 285 190 4 3 2
800NS100-*-S??-54 54 16 50 2091 2091 2091 4 4 4 692 519 346 4 3 2
800NS100-*-S??-68 54 16 50 4221 4221 4221 9 9 9 832 624 416 4 3 2

Table Notes

  1. 1Web-height to thickness ratio exceeds 200. Web stiffeners are required at all support points and concentrated loads.
  2. Maximum point load, Pmax, is determined based on the minimum of the shear capacity or the bending capacity of the blocking/Part No., or the number of screws with proper edge distance/spacing that may be installed. Load assumed to act at mid-span through centroid of Part No., based on a span of 24″. For stud spacing of 16″ oc, above tables may conservatively be used.
  3. Number of screws determined by dividing Pmax by capacity of #10 screw and rounding up. Screw manufacturer shall confirm that their screws meet the code allowable capacity indicated in the table.
  4. Screw capacity based on stud material with thickness and yields strength equal to the blocking/Part No. Minimum screw spacing and edge distance shall not be less than 3 times the nominal screw diameter (per SSMA). For #10 screw, 3 x d = 3 x 0. 190″ = 0.57″.
  5. The properties indicated in the table have been calculated using CFS version 5.0.2 (RSG Software Inc.)
  6. Tabulated values do not consider stud capacity. Studs designed by others.
  7. All calculations per 2016 AISI.

The post NS – Notched Stud Backing appeared first on SCAFCO Steel Stud Company.

]]> NT – Notched Track Backing https://www.scafco.com/steel/products/backing-blocking-stiffeners/nt-notched-track-backing/ Sat, 21 Oct 2017 20:59:26 +0000 http://new.scafco.com/?page_id=559 Gallery

The post NT – Notched Track Backing appeared first on SCAFCO Steel Stud Company.

]]> Notched Track (NT) is used for bracing and bridging of joists and wall studs. NT is also used in hospitals and schools as mechanical backing to provide superior support for equipment and cabinetry.

NT - Notched Track Backing

Features and Benefits

  • Available in widths of 4″, 6″, and 8″
  • Available in 12″, 16″, and 24″ stud spacing
  • Pre-cut notches for flange attachment
  • Eliminates field cutting
  • Provides bracing and bridging support
thumbnail of NT

NT Submittal Download

Material Composition

  • Mill certified steel
  • ASTM: A653/A653M
  • 33 mil
    – 33 ksi yield strength
    – 45 ksi tensile strength
    – G60/G90 galvanized coating
  • 43 mil
    – 33 ksi yield strength
    – 45 ksi tensile strength
    – G60/G90 galvanized coating
  • 54 mil
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G60/G90 galvanized coating
  • 68 mil
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G60/G90 galvanized coating

Nomenclature

NT Nomenclature

Gallery

NS Clip NS Clip

The post NT – Notched Track Backing appeared first on SCAFCO Steel Stud Company.

]]> Kwik-Bridge Punch System https://www.scafco.com/steel/products/backing-blocking-stiffeners/k-kwik-bridge-punch-systems/ Fri, 20 Oct 2017 21:13:08 +0000 http://new.scafco.com/?page_id=565 Order Information Kwik-Bridge Punch System uses the standard SSMA/SSFSA nomenclature, but adds a letter “K” at the end of the product identification. Follow example when ordering your studs with Kwik-Bridge Punch System.

The post Kwik-Bridge Punch System appeared first on SCAFCO Steel Stud Company.

]]> Kwik-Bridge Punch System is a unique patented design that incorporates a tab into the punch-out of the stud, resulting in a clean, labor-saving connection for CRC. The Kwik-Bridge Punch System eliminates extra components required in traditional bridging installation and can be used with regular cold-roll channel.

The cold-roll channel is installed through the stud punch-outs perpendicular to the framing, at pre-determined spacing along the height of the wall. Once the channel is positioned horizontally within the wall cavity, a method of securing the channel to each individual stud will be selected according to the design criteria for the assembly.

Typically, positive attachment is achieved through welding or by using angle clips and screws. The Kwik-Bridge Punch System serves as an alternative method of achieving positive attachment of the cold-rolled channel to the steel stud.

Kwik-Bridge

Features and Benefits

  • Eliminates use of clip angles, bridging clips, and welding
  • No pre-determined stud layout required
  • Faster installation saving up to 40% in combined labor and material costs
  • Bend tabs to 90° and attach cold roll channel
thumbnail of K

Kwik-Bridge Submittal Download

Material Composition

  • Mill certified steel
  • ASTM A653/A653M
  • Available mil thicknesses
    – 18, 20EQ, 30EQD, 33EQS, 43EQS, 30, 33, 43, and 54
    – Not available in 25EQ, 68, 97, or 118
  • Available web widths
    – 3 ½”, 3 ⅝”, 4″, 5 ½”, and 6″
    – Not available in 1 ⅝” or 2 ½” web widths
    – Not recommended for 8″ or greater web widths

Yield Strength

  • 20EQ, 30EQD, 33EQS, 43EQS: 57 ksi
  • 18, 30, 33, 43 mil: 33 ksi
  • 54 mil: 50 ksi

Coating Thickness

  • 18, 20EQ, 30EQD, 30: G40 hot-dipped galvanized coating
  • 33EQS, 43EQS, 33, 43, 54 mil: G60 hot-dipped galvanized coating
  • G90 available upon request
Kwik-Bridge Wall

Order Information

Kwik-Bridge Punch System uses the standard SSMA/SSFSA nomenclature, but adds a letter “K” at the end of the product identification. Follow example when ordering your studs with Kwik-Bridge Punch System.

The post Kwik-Bridge Punch System appeared first on SCAFCO Steel Stud Company.

]]> ELEV – Elevator Stud Splice Clip https://www.scafco.com/steel/products/backing-blocking-stiffeners/elev-elevator-stud-splice-clip/ Thu, 19 Oct 2017 21:45:52 +0000 https://www.scafco.com/?page_id=2006 Quantity / Order Information Part No. Clip Dimensions Width Leg 350ELEV-33 3 ½” 125 362ELEV-33 3 ⅝” 125 400ELEV-33 4″ 125 550ELEV-33 5 ½” 125 600ELEV-33 6″ 125

The post ELEV – Elevator Stud Splice Clip appeared first on SCAFCO Steel Stud Company.

]]> The ELEV elevator stud splice clip is used to join two shorter stud members into one long member for jobsites where elevator transportation limits the allowable stud length.
ELEV - Elevator Stud Splice Clip

Features and Benefits

  • Available in widths of 2.5″ to 6″
  • Other widths available upon request
  • Available in standard 24″ lengths
  • Pre-punched guide holes
  • Customizes lengths without additional cutting
  • Splice design calculations available, contact Technical@SCAFCO.com

Elevator Stud Splice Clip Brochure

Quantity / Order Information

Part No. Clip Dimensions
Width Leg
350ELEV-33 3 ½” 125
362ELEV-33 3 ⅝” 125
400ELEV-33 4″ 125
550ELEV-33 5 ½” 125
600ELEV-33 6″ 125

The post ELEV – Elevator Stud Splice Clip appeared first on SCAFCO Steel Stud Company.

]]>
