PLS2 – Bypass Slab Slide Strut

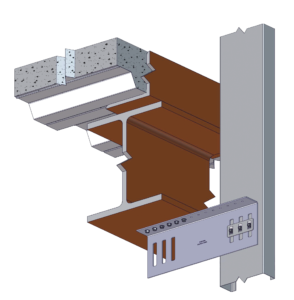

The PLS2 bypass slab slide strut secures the bypass curtain wall stud to the building structure, allowing for vertical deflection while maintaining lateral rigidity . The strut provides a non-frictional connection and prevents vertical load transfer into the curtain wall . The insert is attached to the clip, making installation quick, easy, and efficient . Patent No . 7478508-B2

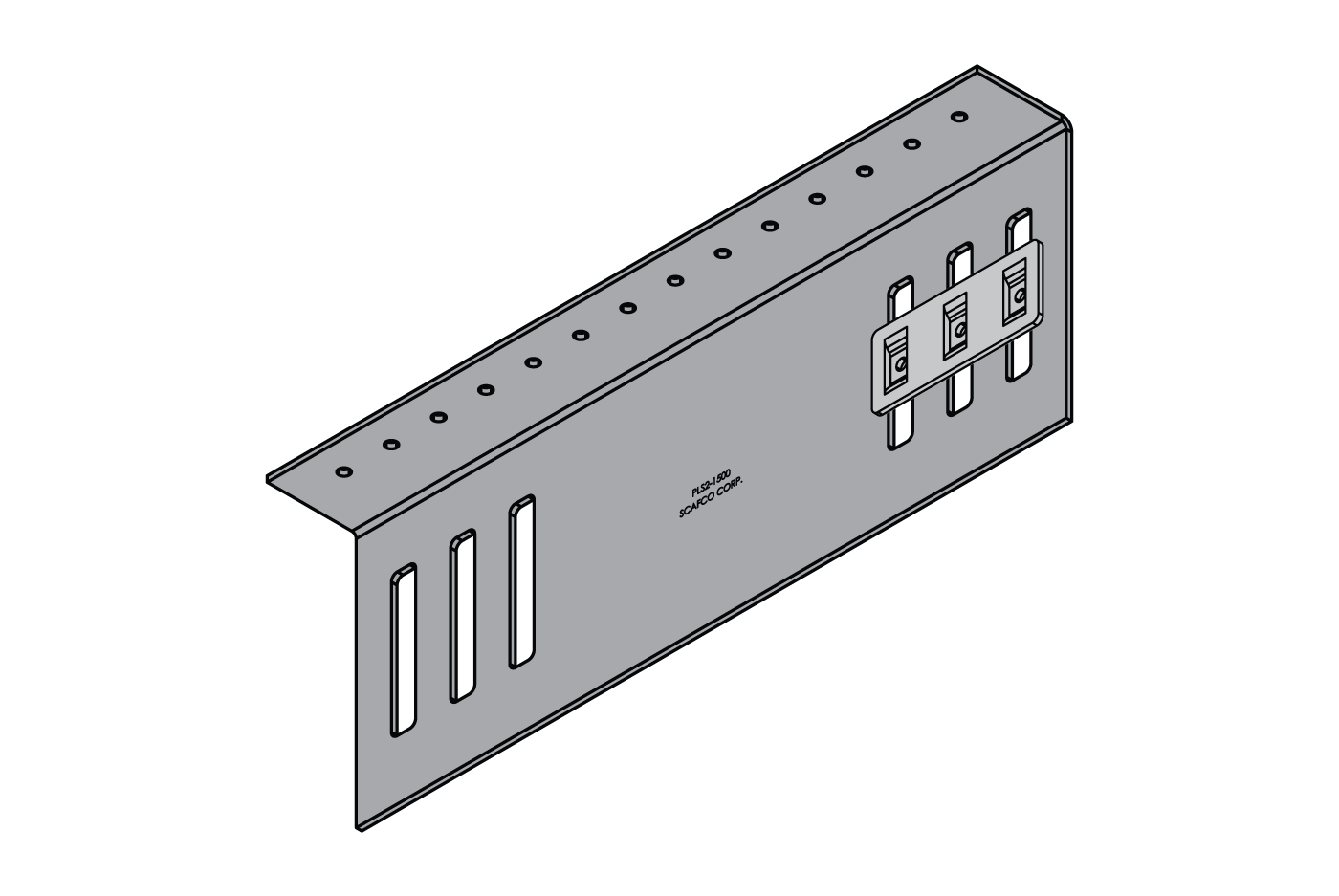

PLS2 Clip

Features & Benefits

  • Insert allows for 2″ total vertical deflection
    – Deflection greater than 2″ is available
  • Loads based on #12 screws
    – Screws are provided
  • Large insert piece for easy installation
  • Pre-punched guide holes
  • Thicker steel for improved weld capacity to the structure
  • Transfers horizontal load into structure
  • Maintains lateral rigidity

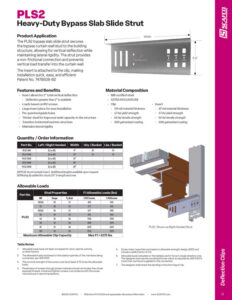

thumbnail of PLS2

PLS2 Submittal Download

Material Composition

  • Mill certified steel
  • ASTM A653/A653M
  • Clip
    – 118 mil material thickness
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G90 galvanized coating
  • Insert
    – 97 mil material thickness
    – 57 ksi yield strength
    – 65 ksi tensile strength
    – G90 galvanized coating

Allowable Loads

Model No. Stud Thickness F1 Allowable Loads (lbs)
Mils Gauge Fy (ksi) 2 #12 Screws 3 #12 Screws
PLS2 33EQS 20 57 429 643
33 20 33 377 565
43EQS 18 57 677 1015
43 18 33 561 841
54 16 50 1139 1709
68 14 50 1610 2275
97 12 50 2275 2275
118 10 50 2275 2275
Maximum Allowable Clip Load Max F1=2275 lbs

Table Notes

  1. Allowable loads have not been increased for wind, seismic or other factors.
  2. The allowable loads are based on the steel properties of the members being connected, per AISI S100.
  3. The nominal strength of the screw must be at least 3.75 times the allowable loads.
  4. Penetration of screws through joined materials should not be less than 3 exposed threads. Install and tighten screws in accordance with the screw manufacturer’s recommendations.
  5. Screw shear capacities are based on allowable strength design (ASD) and include a safety factor of 3.0.
  6. Allowable loads indicated on the table(s) are for force in single direction only. If more than one force is applied to the connection, the designer shall provide the combined forces check as required by AISI S100.
  7. The designer shall check the bending in the short leg of clip.

Quantity / Order Information

Model No. Left / Right Handed Width Qty / Bucket Lbs / Bucket
PLS2-900 (L) or (R) 9″ 20 53
PLS2-1200 (L) or (R) 12″ 15 51
PLS2-1500 (L) or (R) 15″ – –
PLS2-1800 (L) or (R) 18″ – –
PLS2-2000 (L) or (R) 20″ – –

All PLS2 struts include insert. Additional lengths available upon request.
