SCAFCO’s Serenity-RC-Plus was professionally sound tested at Riverbank Acoustical Laboratories, one of the leading and longest-standing acoustical testing facilities in the United States. Acoustical testing for the STC performance of Serenity-RC-Plus proved the product’s ability to provide high-end sound performance for both steel and wood framed assemblies, well above other high-end RC products available.
Serenity-RC-Plus Brochure
Testing
Riverbank Acoustical Laboratories
Sound assemblies are constructed, thoroughly inspected, and then certified by Riverbank Acoustical Laboratories. NVLAP accredited for ASTM E90-09 & E413-10, ISO Certified.
Riverbank Acoustical Laboratories is accredited by the US department of commerce, National Voluntary Laboratory Accreditation Program (NVLAP Lab Code 100227-0) to ISO 17025:2005 laboratory quality management and specific acoustical test standards.
SSA Acoustics
SSA Acoustics, a leader in engineering acoustics and multi-family residential design for 17 + years, has conducted extensive testing and research on SCAFCO’s Serenity Resilient Channel.
SSA’s team of acoustical consultants and lab technicians tested Serenity-RC-Plus for isolation efficiency and in-field performance. When comparing the results gathered to those of other products within the industry, the team found that Serenity-RC-Plus is the superior product for reducing airborne transmission in walls and ceilings for both wood and steel assemblies.
Serenity-RC-Plus consistently measured better than its competitors in isolation and efficiency tests, both critical to obtaining elevated STC (Sound Transmission Class) performance. SSA’s group of highly-qualified consultants continue to research, develop, and test the product to ensure it meets all required sound specifications.
The all-around performance of Serenity-RC-Plus impressed Bill Stewart, the managing partner of SSA Acoustics:
The superior performance of Serenity-RC-Plus in lab and field testing is un-matched. Recommended as our basis of design in all resilient channel applications”
Profile Features
Serenity-RC-Plus has been engineered, with help from the acoustical community, to include the following features that reduce sound transmission through the assembly.

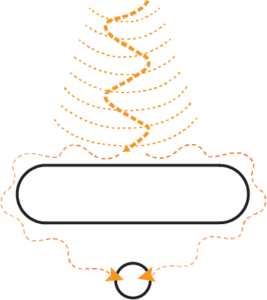

Slot and Hole Pattern
- 1¼” x 5/16″ Slots
- 3/16″ (#8 Screw) Holes
- Slots and holes are aligned to increase the path that sound must travel through the assembly
- 2” Slot spacing along the channel allows for wall and ceiling framing at almost any spacing conditions including the typical 12” o.c, 16” o.c, and 24” o.c
Stiffening Ribs
- 1/16″ Raise stiffening ribs
- Creates separation and air space between sheathing and framing stud
- Only 2 points of contact between sheathing and framing stud, decreases area for sound transmission
Serenity Knurling
- Stiffens attachment flange to create gap between sheathing
- Aids in positive screw attachment through thin acoustical steel profile
Steel and Wood Wall Sound Testing Results
| Receiving Room Side | Source Room Side | Insulation Type | Stud spacing | STC Rating | ||
|---|---|---|---|---|---|---|
| Steel Studs1,2 | 2×4 Wood3 | 2×6 Wood3 | ||||
| 5/8″ Type X GWB (single layer) | 5/8″ Type X GWB (single layer) with RC | R-13 | 24″ OC | 52 | 46 | 48 |
| 5/8″ Type X GWB (single layer) | 5/8″ Type X GWB (double layer) with RC | R-13 | 24″ OC | 58 | 53 | 53 |
| 5/8″ Type X GWB (double layer) | 5/8″ Type X GWB (double layer) with RC | R-13 | 24″ OC | 61 | 58 | 58 |
- 3 5/8″ Supreme stud used for Steel Stud Tests
- RAL TL 15-235,236,237
- RAL TL 16-406, 407, 408, 409, 410, 411
